R15 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch
| Model | US | R15ECO | |
| Basic parameters | Machine working weight | 3179 lb | 1445kg |
| Bucket capacity | 0.64ft³ | 0.018m³ | |
| Travel speed low/high speed | 0-0.93/0-1.6mph | 0-1.5/0-2.5km/h | |
| Gradeability | 30% | 30% | |
| Ground pressure | 4.6psi | 31.4kpa | |
| Maximum digging force | 2338lbf | 10.4KN | |
| Maximum digging radius | 128.9in | 3274mm | |
| Maximum digging depth | 71.1in | 1807mm | |
| Maximum digging height | 119.9in | 3046mm | |
| Maximum unloading height | 89.6in | 2277mm | |
| Maximum deflection angle | 92° | 92° | |
| Track extension range | 35.4-47.2in | 900-1200mm | |
| Engine | Engine brand | Kubota | Kubota |
| Engine model | D722 | D722 | |
| Maximum horsepower | 13.7hp | 13.9ps | |
| Maximum power | 10.2kw | 10.2kw | |
| Maximum speed | 2500rpm | 2500rpm | |
| Displacement | 0.19gal | 0.719L | |
| Number of cylinders | 3 | 3 | |
| Cooling method | Water-cooled | Water-cooled | |
| Engine oil change amount | 0.66gal | 3.5L | |
| Fuel form | Diesel | Diesel | |
| Fuel grade | 0/-10 | 0/-10 | |
| Theoretical fuel consumption | 1.1-1.5L/h | 1.1-1.5L/h | |
| Body | Transport length | 91.6in | 2327mm |
| Transport width | 38.7in | 983mm | |
| Transport height | 88.3in | 2243mm | |
| Counterweight ground clearance | 16.7in | 427mm | |
| Bucket width | 15.7in | 400mm | |
| Boom length | 58.1in | 1477mm | |
| Arm length | 31.5in | 800mm | |
| Bulldozer blade width | 40.3in | 1024mm | |
Labadi Engineering
8% $1,500.00
R15 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch
Product SKU: N/A
Availability:
In stock
Low stock
Pre-Order
Out of stock

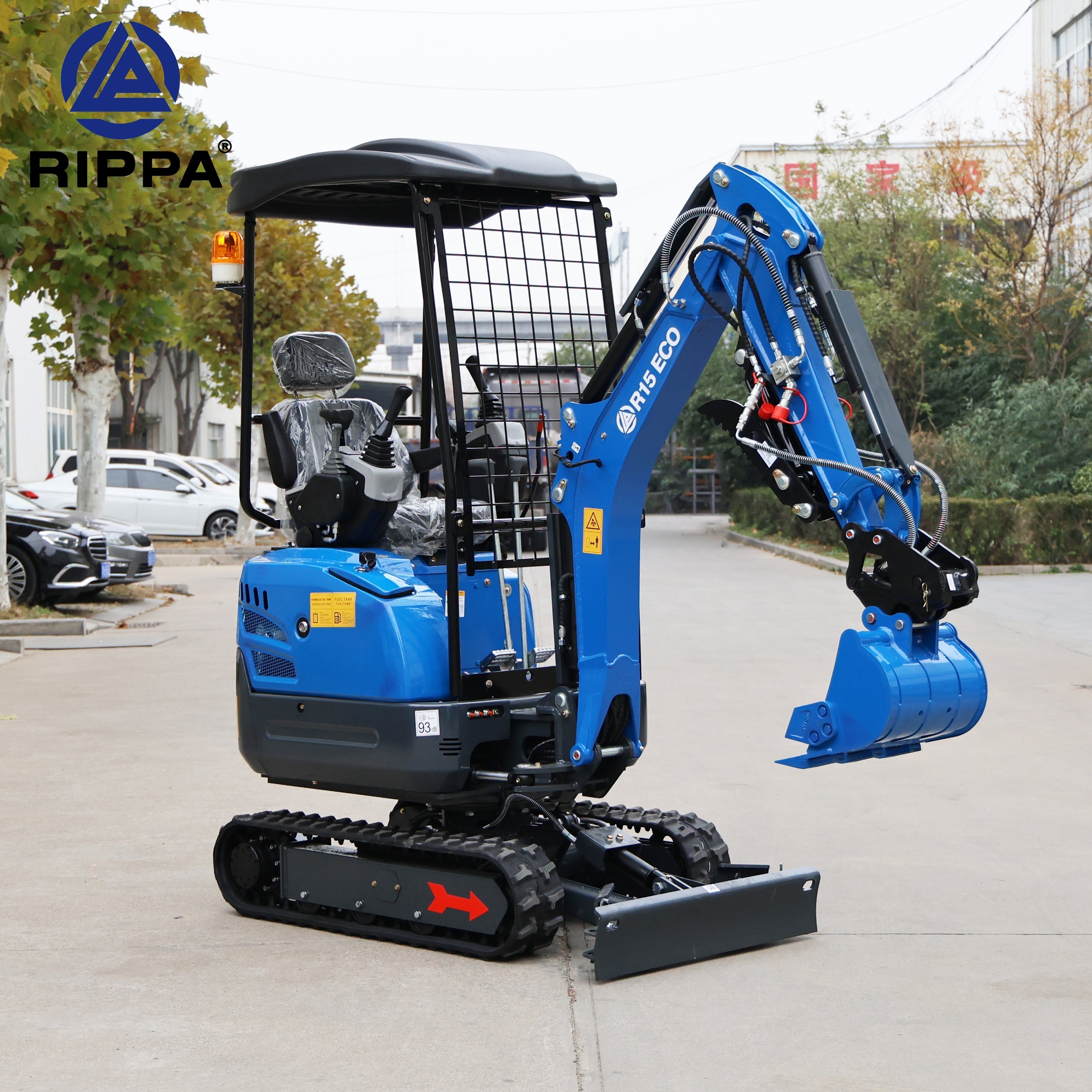

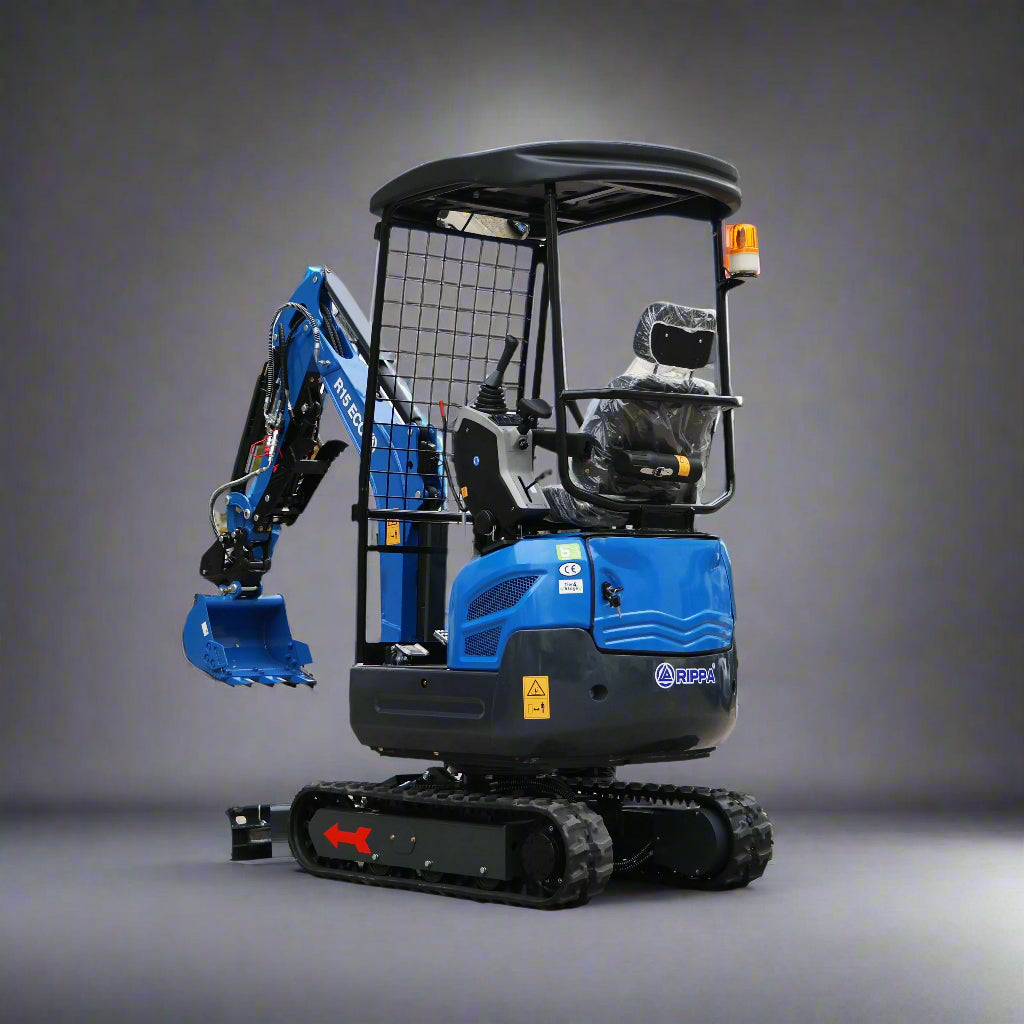

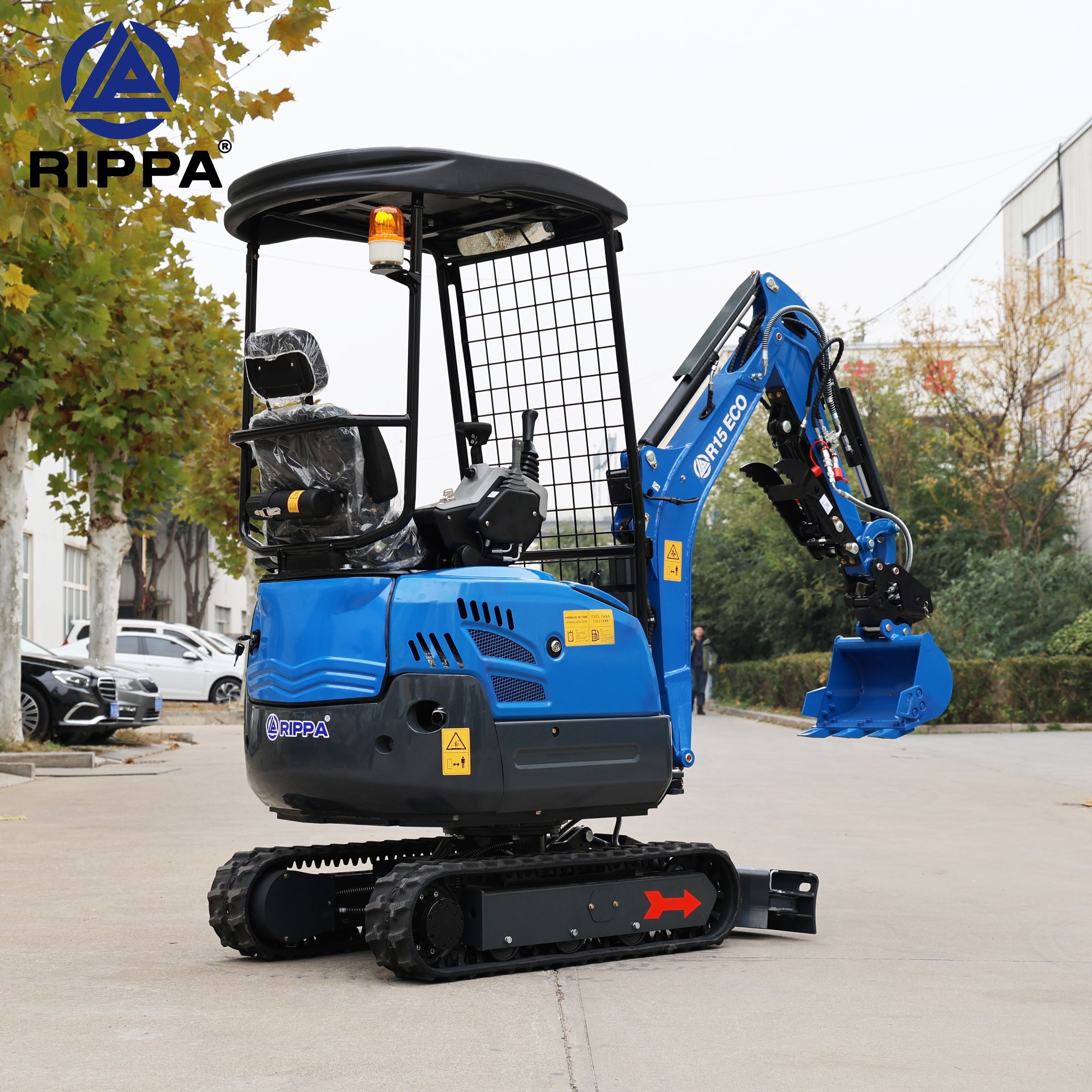

R15 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch
1.5 Tonne | Kubota Japanese Engine with Australia Wide Warranty, Delivered Directly by Kubota | Includes swing boom, telescopic track, and 40 cm digging bucket.
1. Engine
The R15 is powered by a Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota, producing 10.2 kW (13.97 HP) at 2500 RPM.
- Engine Model: Kubota D722 – 3-cylinder, water-cooled diesel engine
- Displacement: 0.719 L
- Oil Capacity: 1.5 L
- Same engine used in trusted global industrial equipment
- Nationwide support for parts and servicing
2. Fuel
- Fuel Type: Diesel
- Fuel Grade: 0# or -10#
- Fuel Tank Capacity: 20 L
- Hydraulic Oil Tank: 22 L
3. Performance
- Operating Weight: 1460 kg
- Bucket Capacity: 0.018 m³
- Travel Speed: 0–1.5 km/h
- Ground Pressure: 31.4 KPa
- Climbing Ability: 30%
- Digging Force: 10.2 kN
- Max Digging Distance: 3274 mm
- Max Digging Depth: 1806 mm
- Max Dump Height: 2277 mm
- Max Digging Height: 3046 mm
- Track Width Adjustment: 890–1190 mm
4. Other Specs

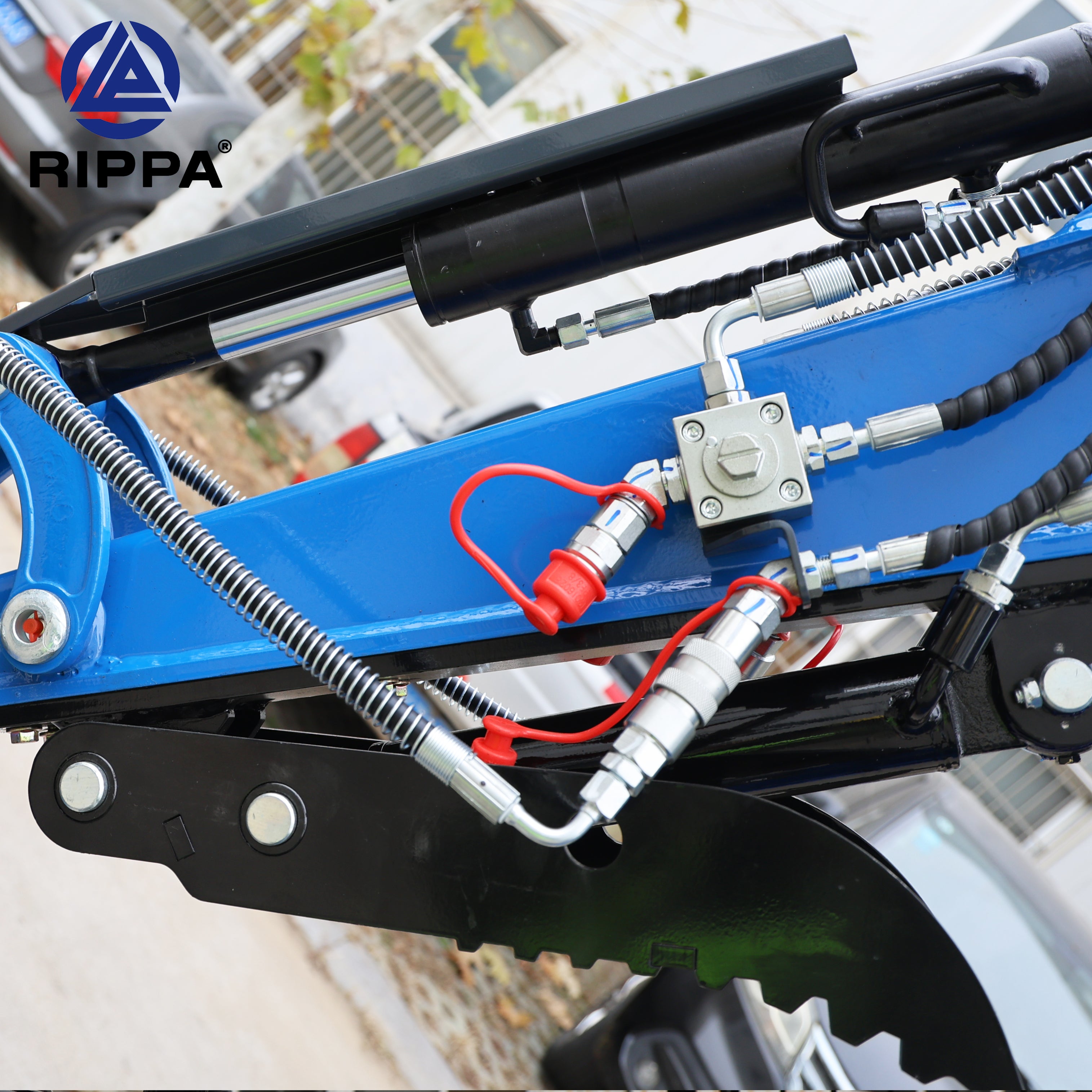

- Hydraulic Pump: Gear pump (Model 308–303) – Tianjin Travel / Shengjie
- Max Flow: 21.6 L/min
- Rated Pressure: 18 MPa | Max Pressure: 20 MPa
- Multi-Way Valve: 9-way pilot – Tengfei / Shengjie
- Travel Motor: BM6-315 – Paiyi / Zhejiang Dali
- Swing Motor: BM2-315

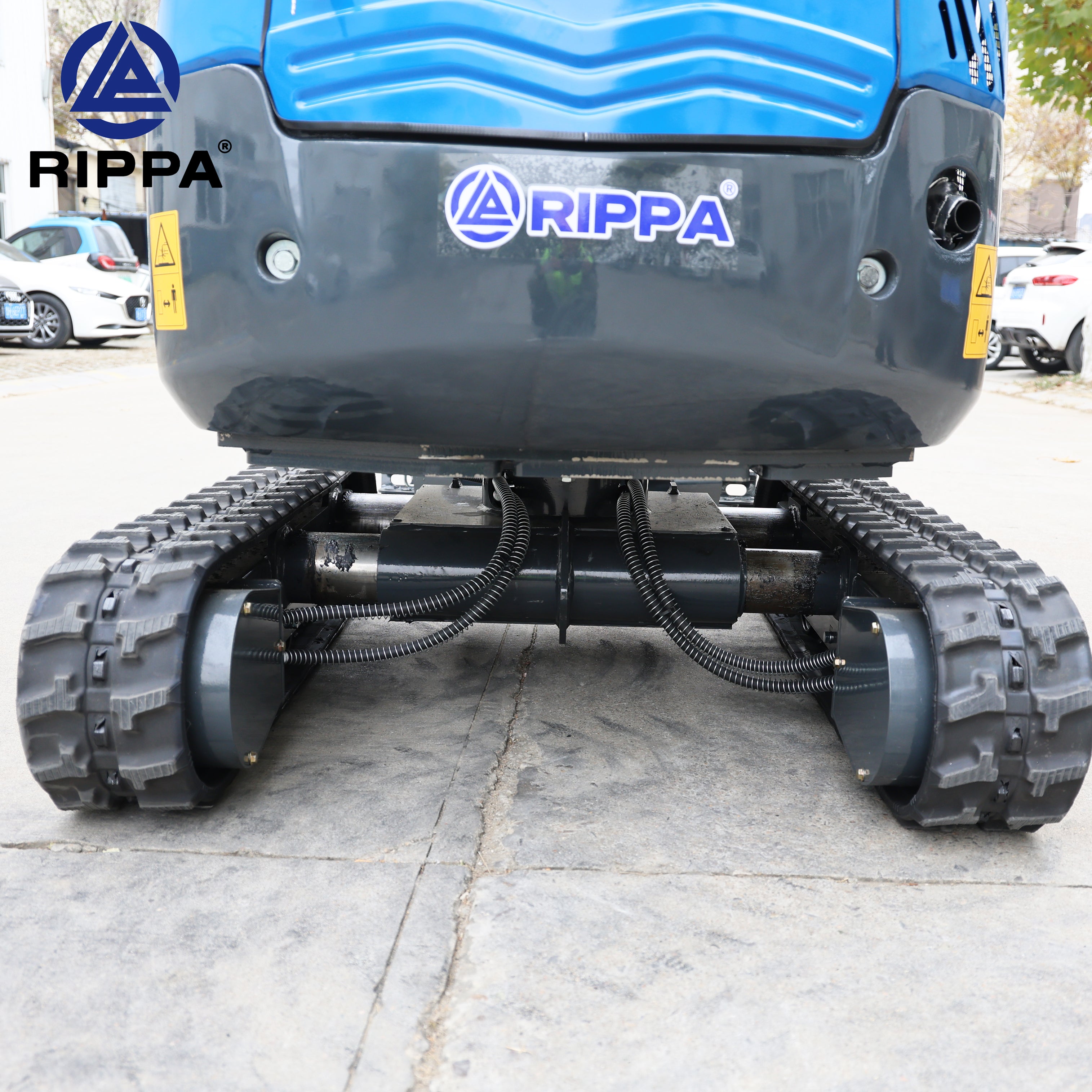

- Chassis: Steel or rubber tracks, 74 rubber blocks
- Track Tensioning: Mechanical
- Quick Hitch: Manual or hydraulic
- Attachments: Rake, Grabber, Ripper, Breaker

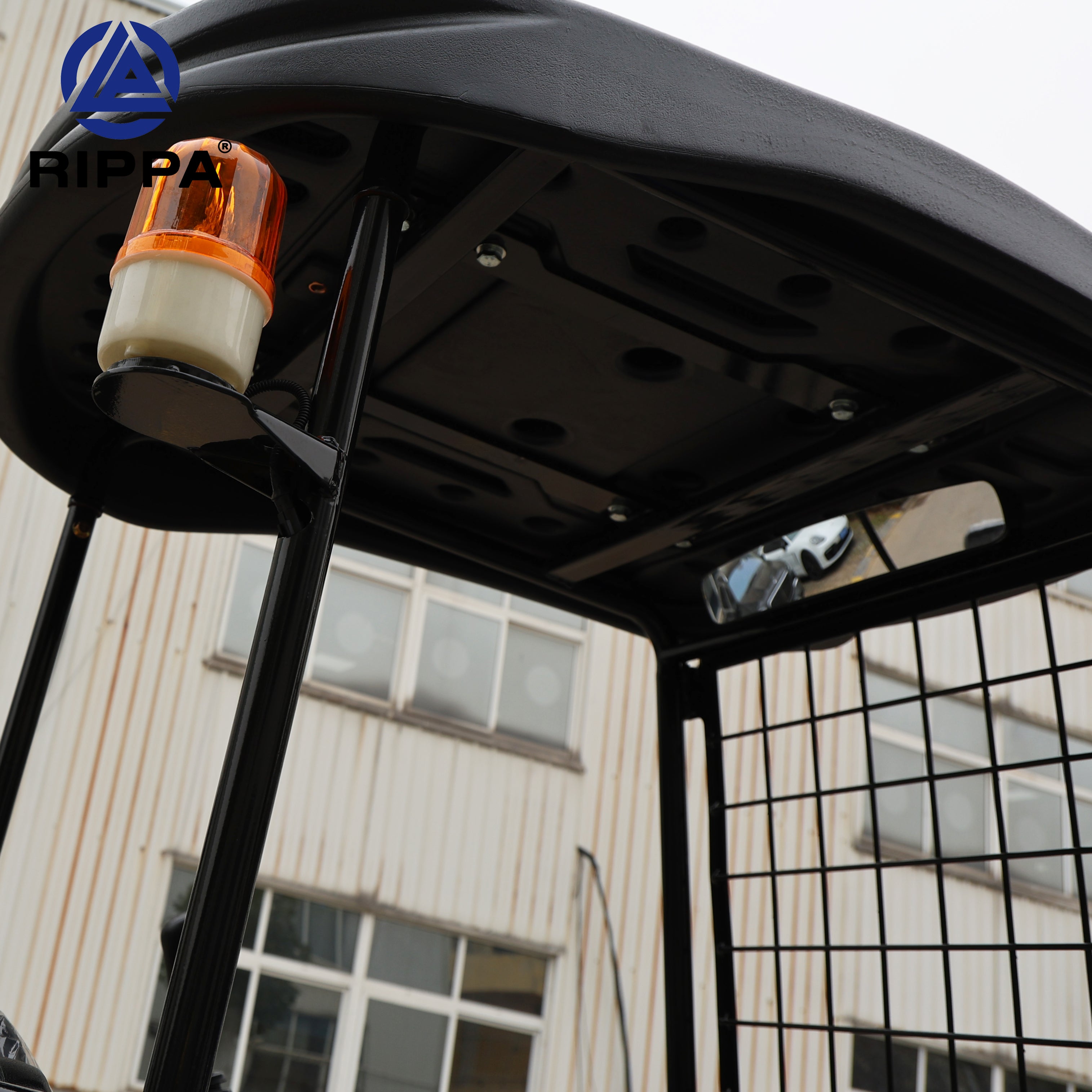

- Cab: Optional
- Handrail: Optional
- Dimensions:
- Length: 2327 mm
- Width: 983 mm
- Height: 2243 mm
- Ground Clearance: 427 mm
- Blade Width: 1024 mm
5. Shipping & Logistics
- Wooden Box Size: 2560 × 1060 × 1470 mm
- Compact Box Size: 1340 × 1100 × 1780 mm
- Units per 40HQ (Assembled): 12
- Units per 40HQ (Dismantled): 24
6. Warranty
- Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota
- 1-Year Warranty on Hydraulic Pump
- Nationwide servicing and parts support available
