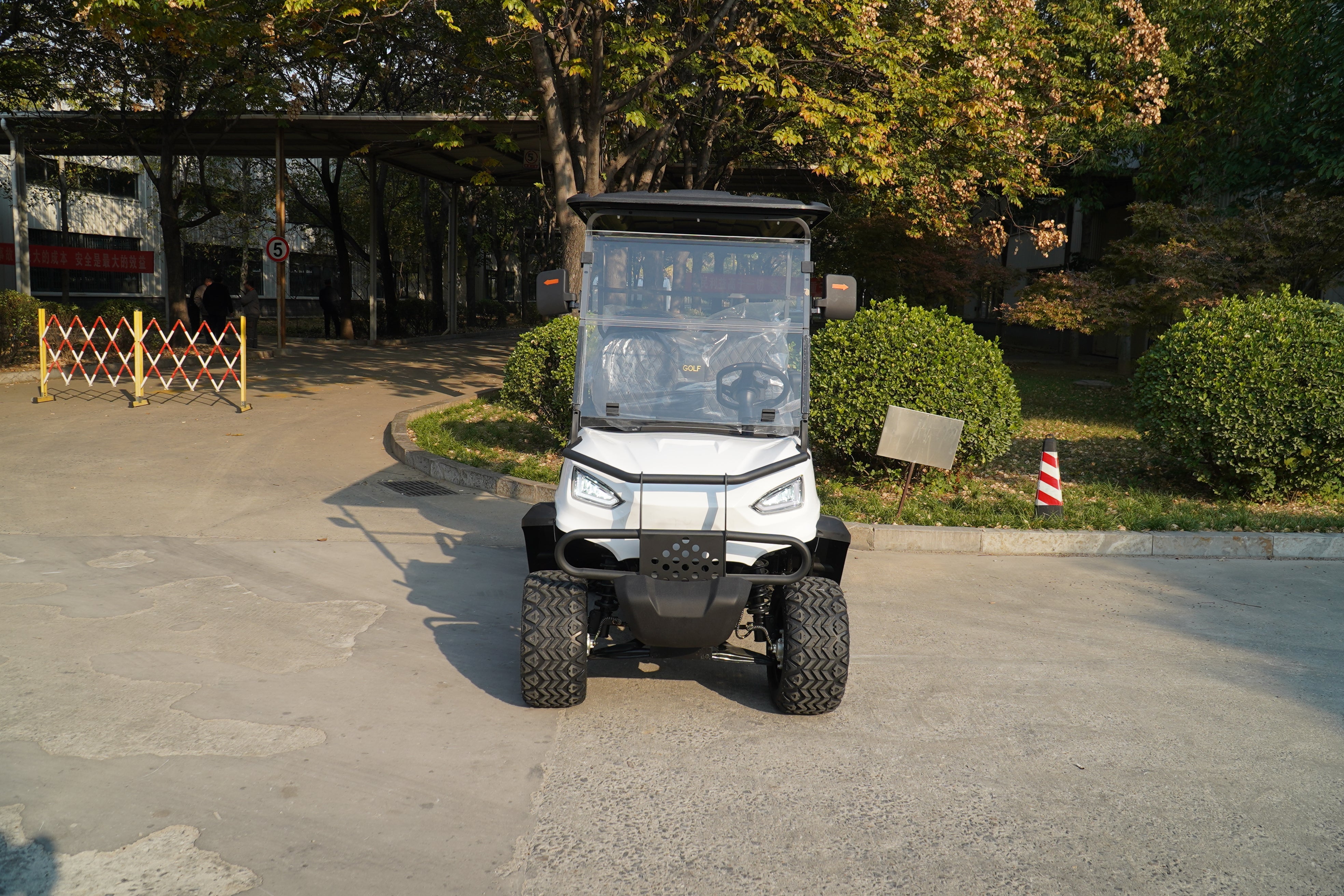

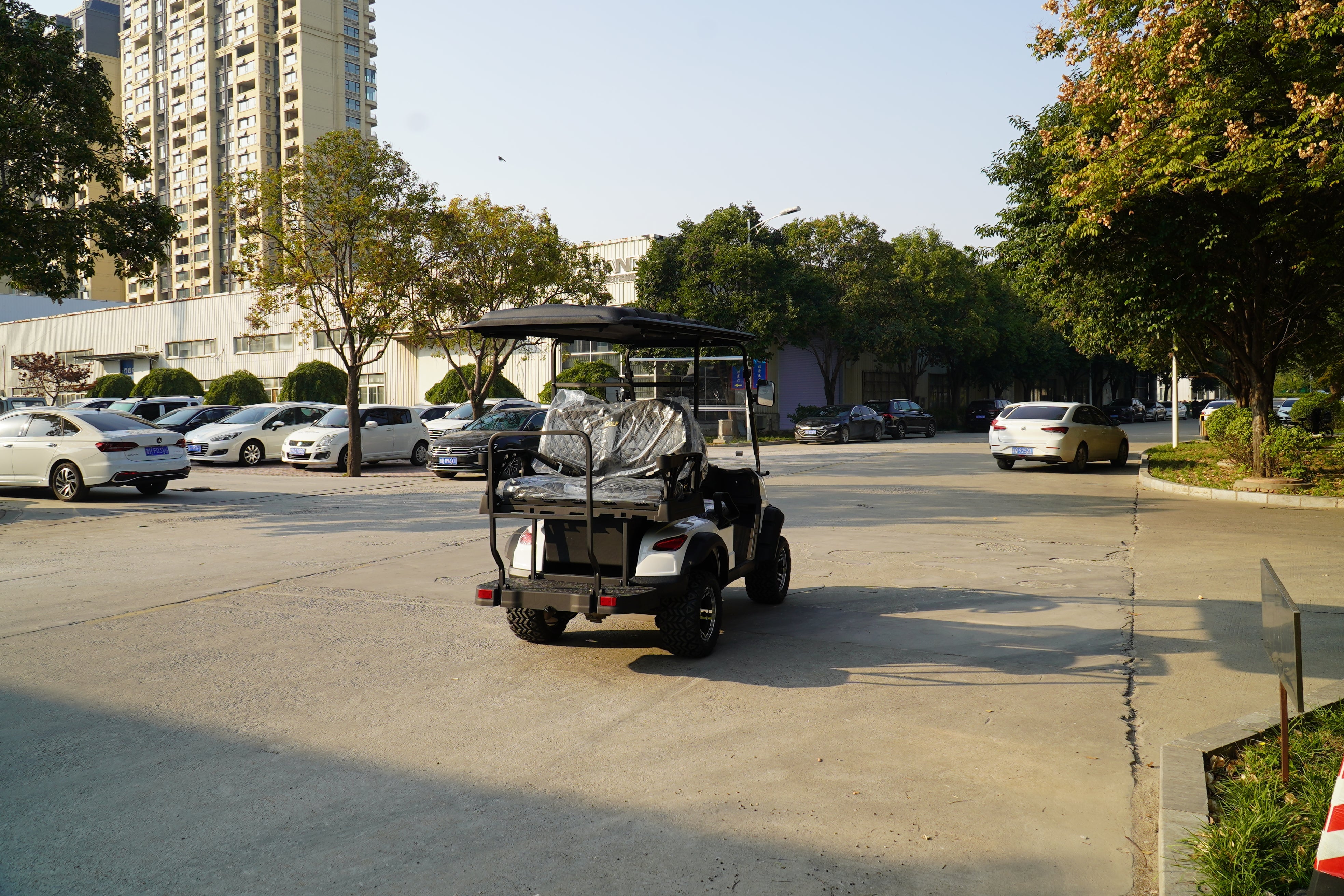

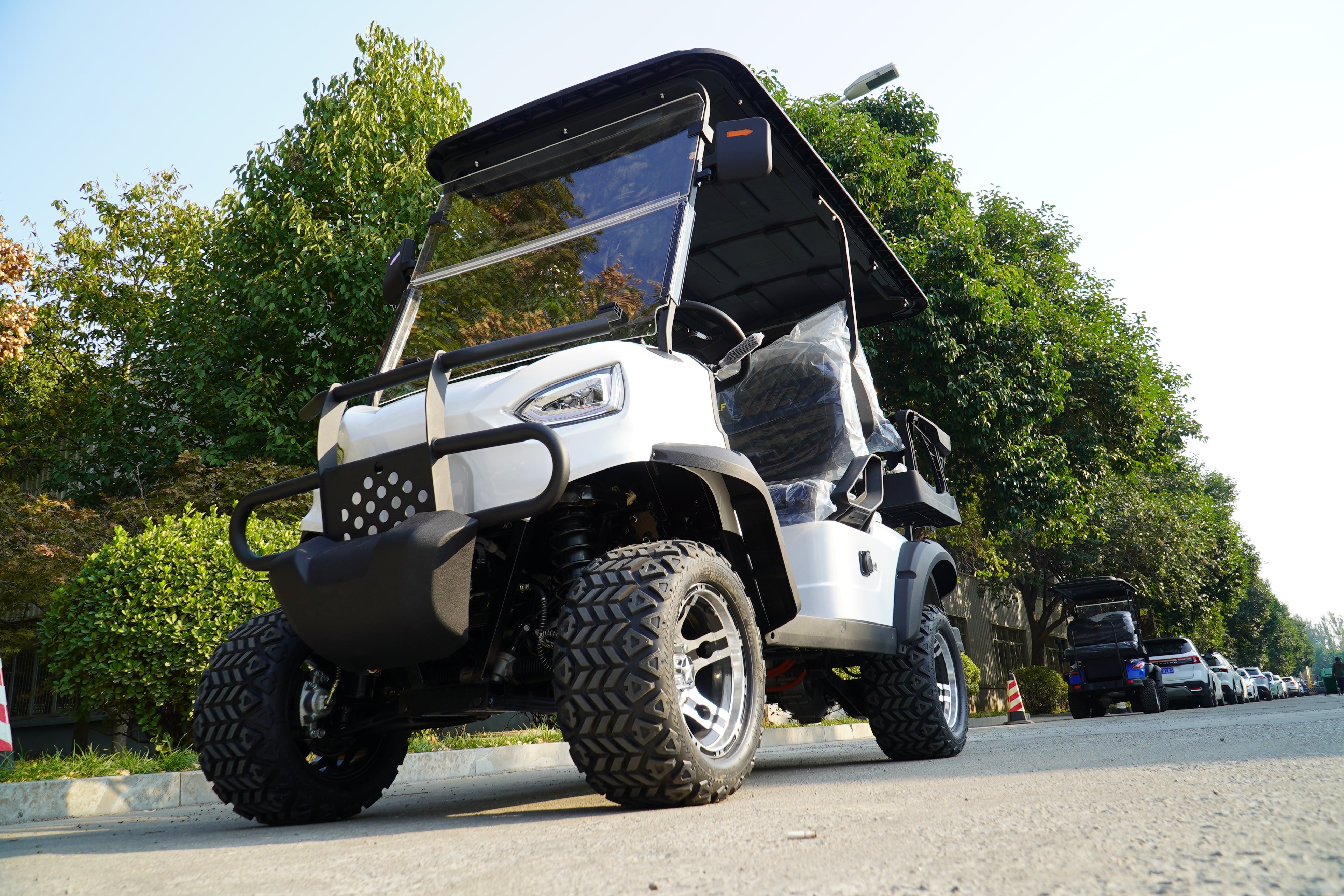

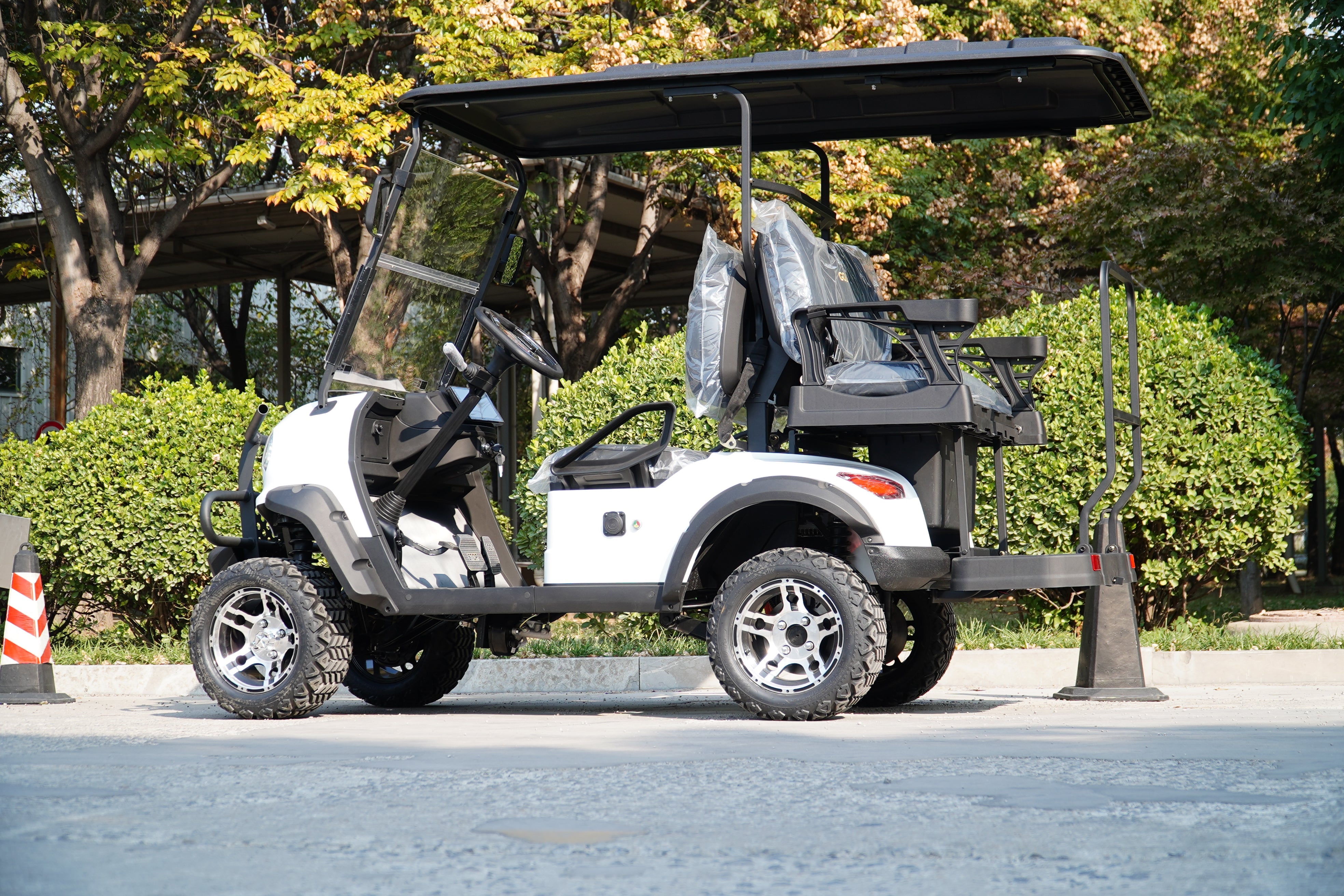

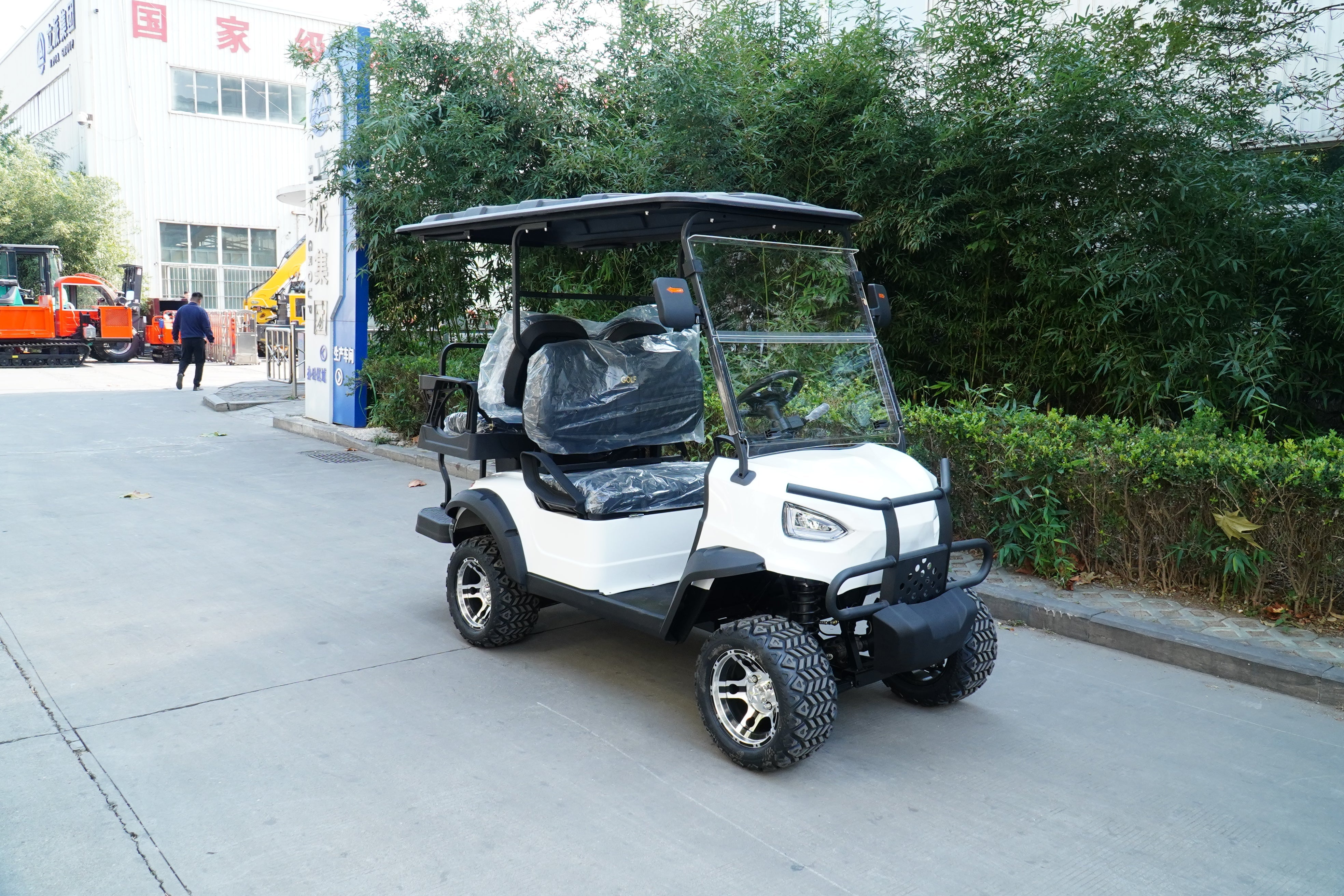

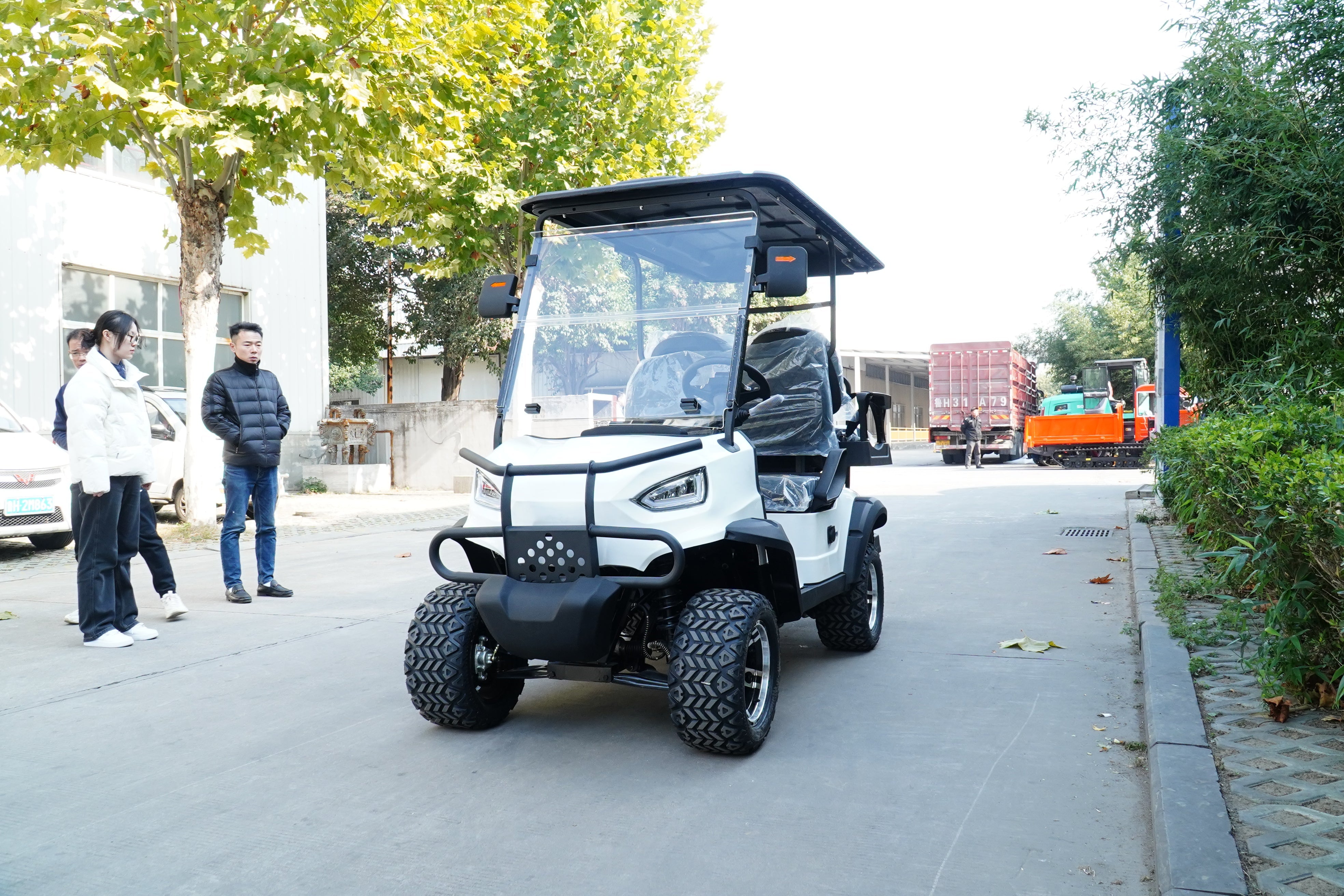

Golf Cart 4 seats
Model: A-type 4-seater 2+2 Golf
Electronic control AC smart controller

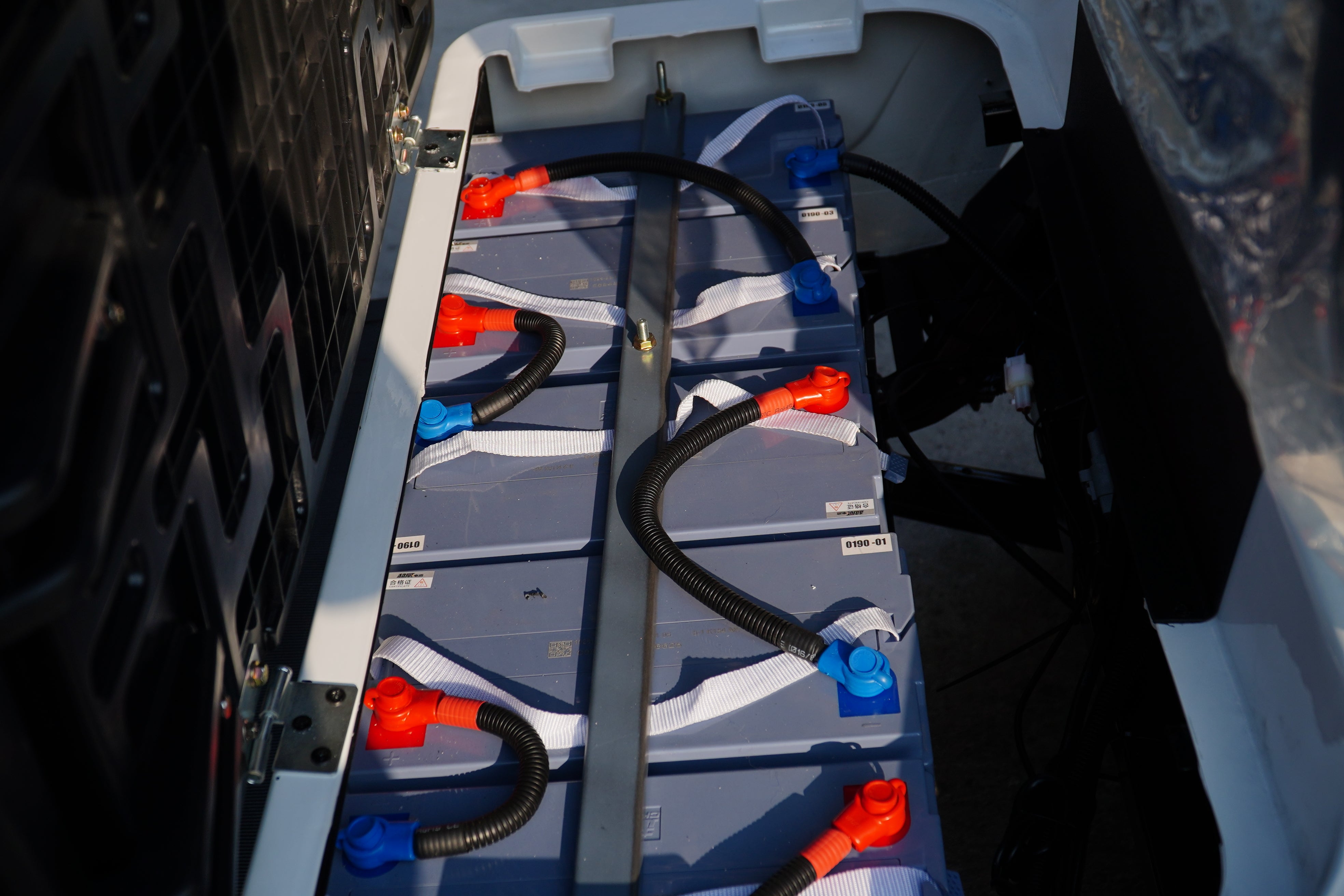

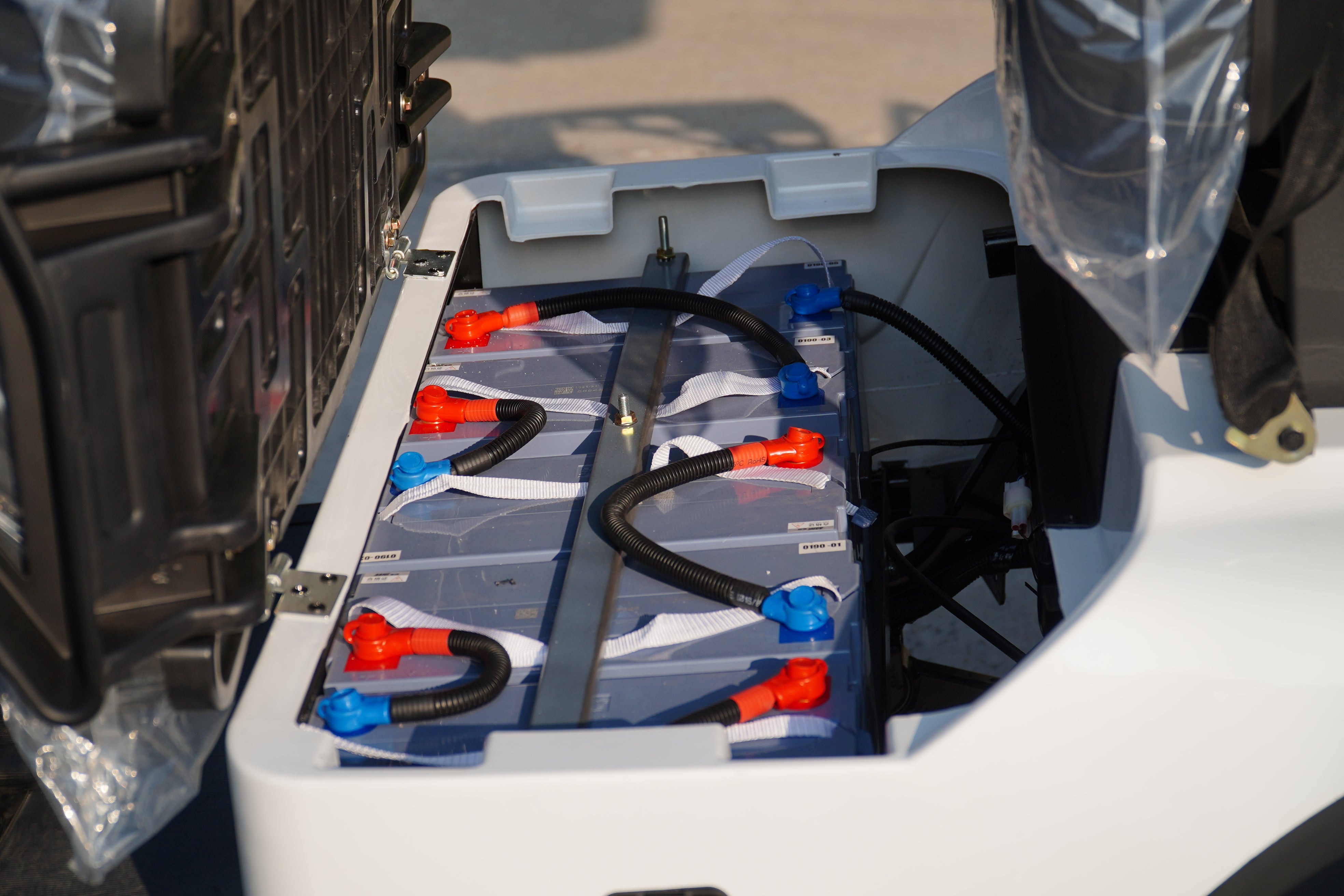

Battery 5 maintenance-free batteries
Electrical System

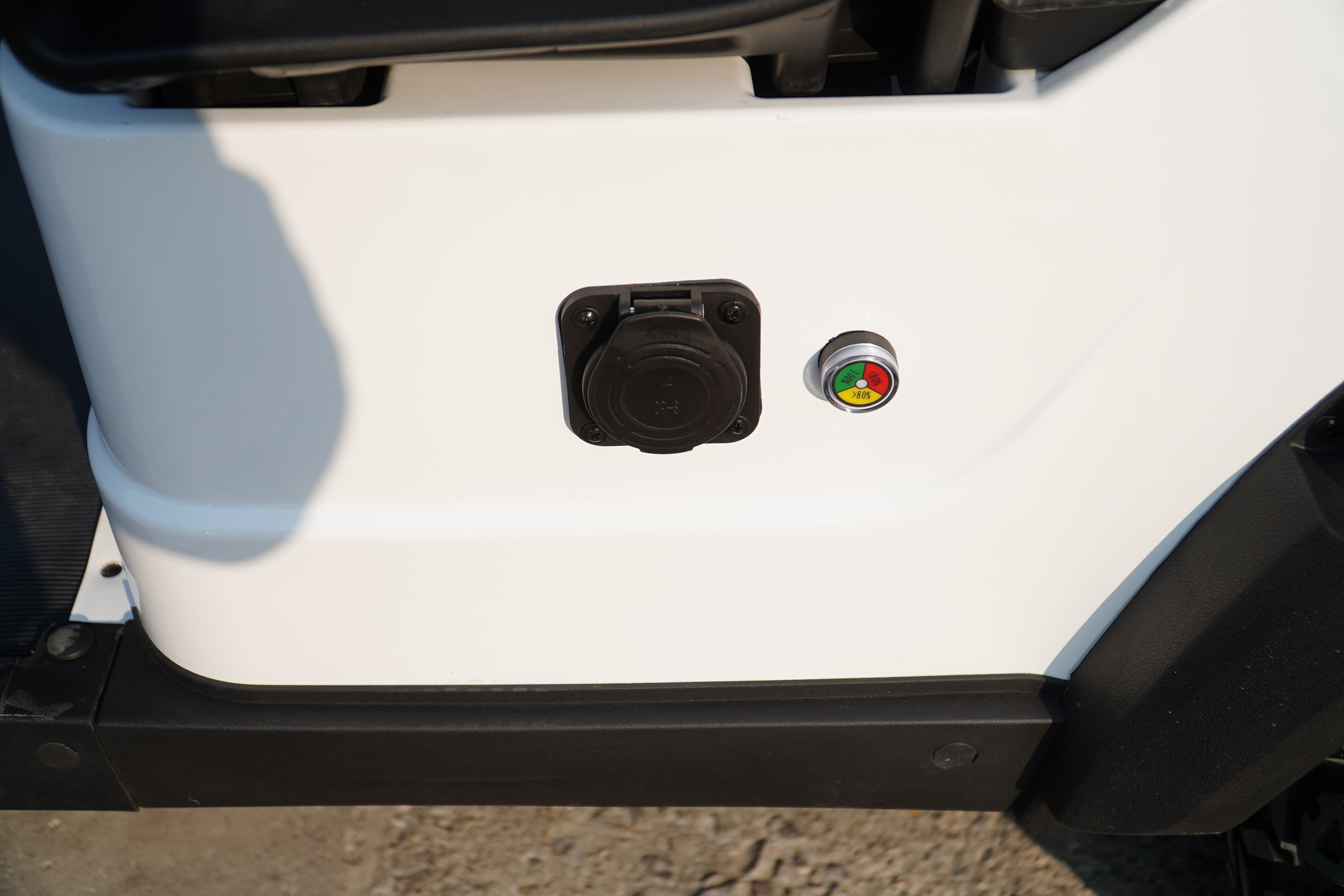

Charger Onboard smart charger
Charging time 6-8 hours
Rated members 4 people
Cruise range 80-100 km Maximum speed ≤35KM/h
System voltage 60V Motor power 4KW AC motor
Minimum turning radius 4.5M Braking distance ≤4M
Technical Parameters
Maximum climbing grade ≤25% Minimum ground clearan 150
Length*width*height (mm) 3000*1290*2050
Front and rear wheelbase (mm) 950*950
Wheelbase (mm) 1700
Curb weight (kg) 560

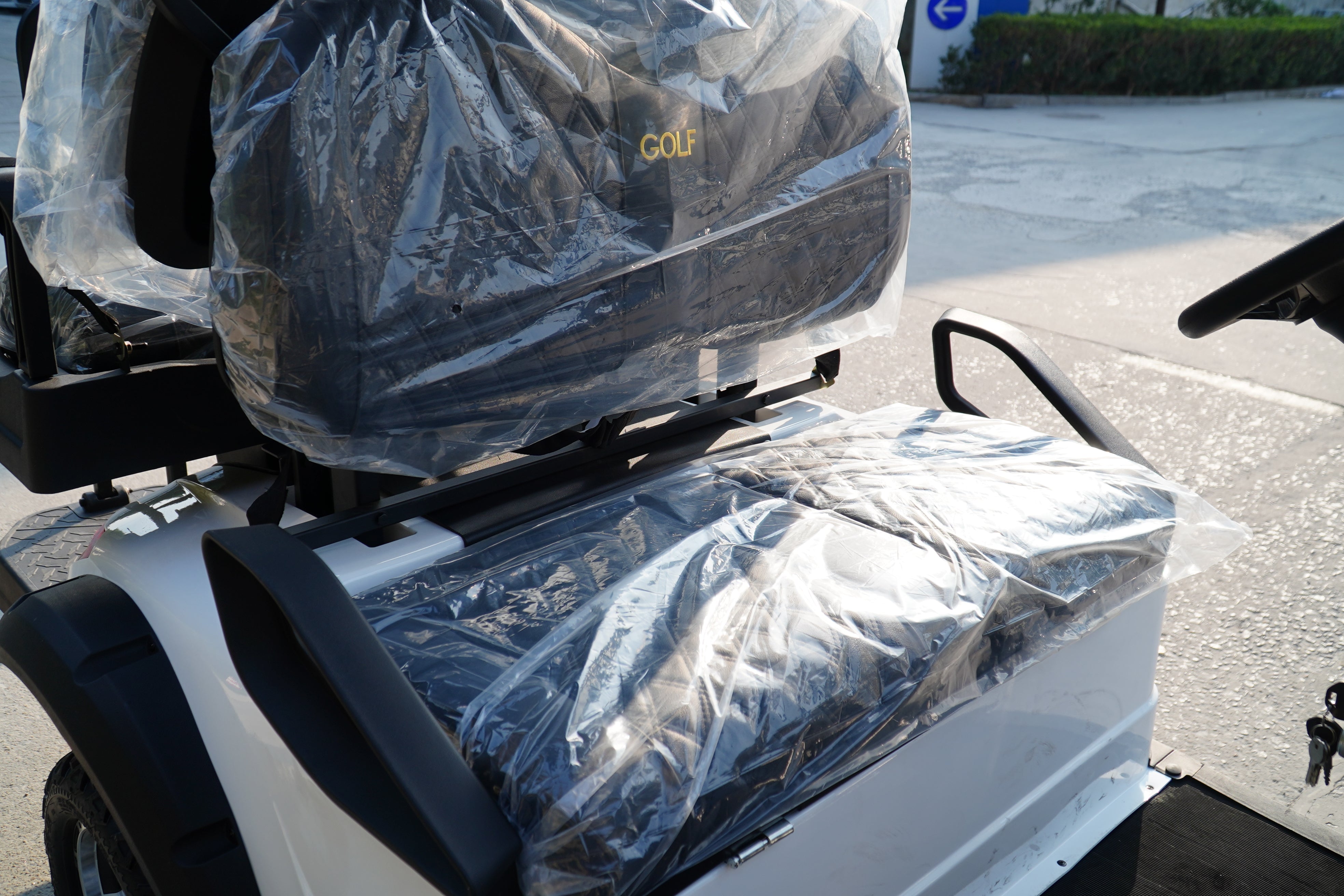

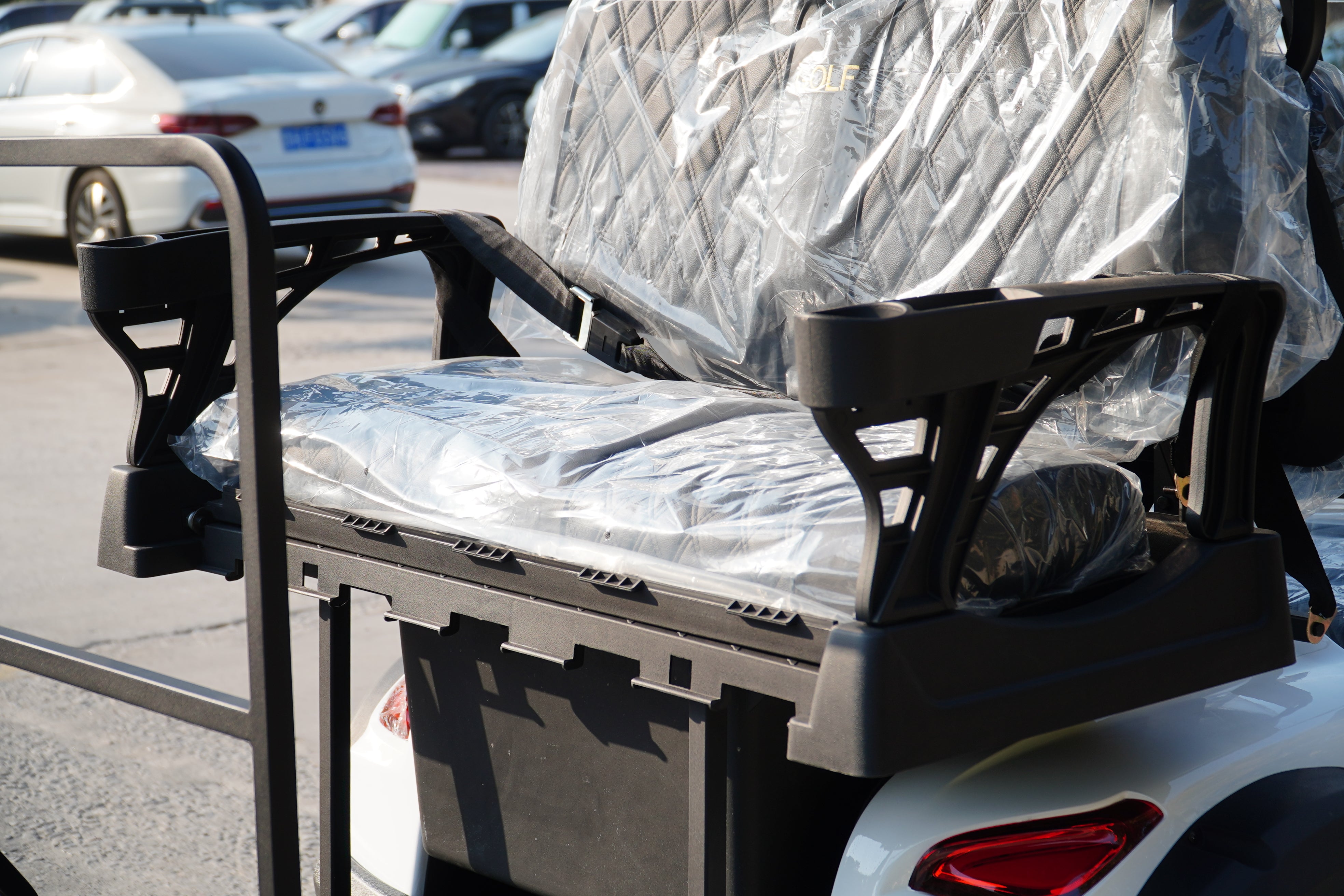

Seats High-resilience integral car seat

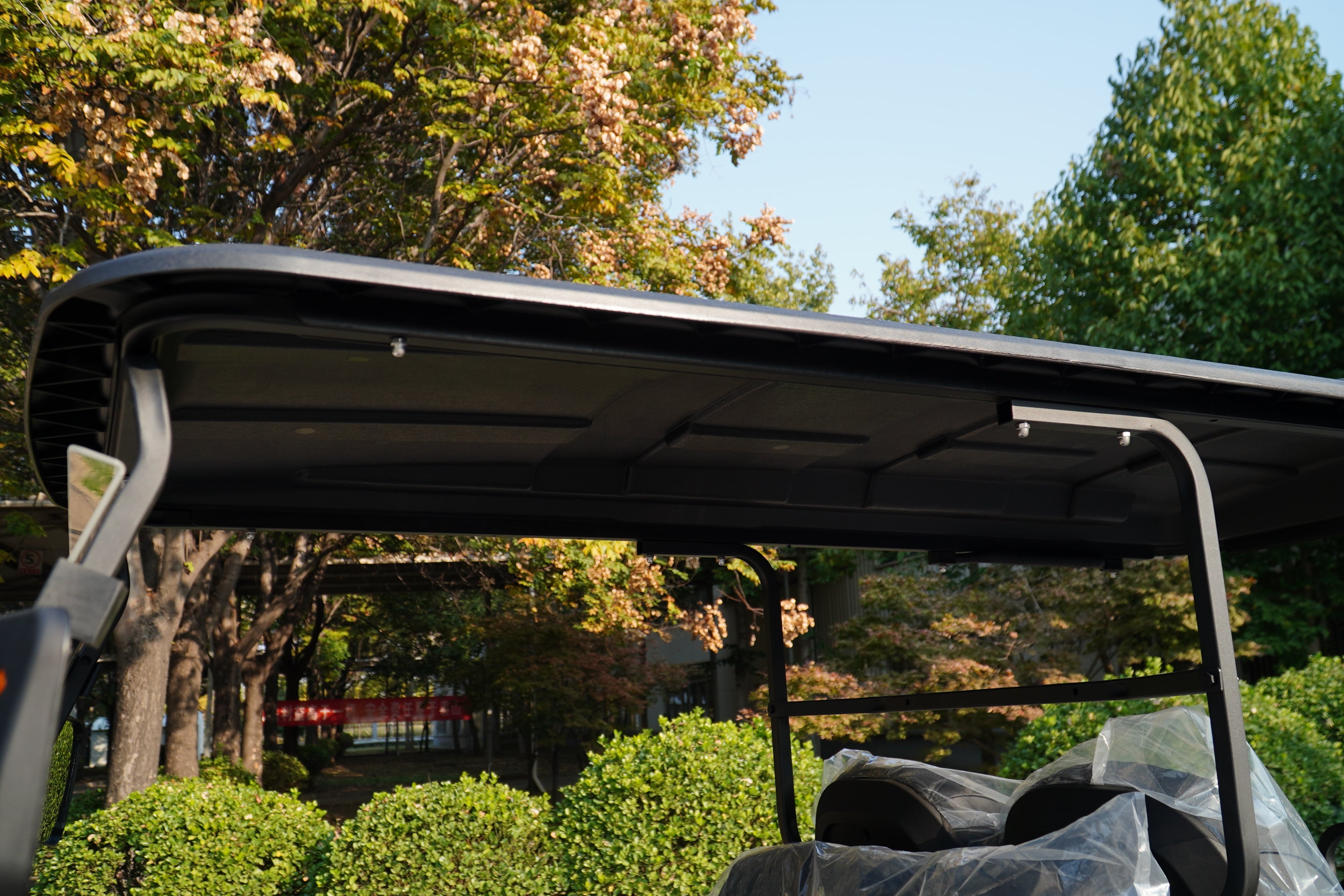

Roof Injection molding of automotive engineering materials
Body material The whole vehicle is made of injection molding material, and the modular structure can be replaced
piece by piece, saving maintenance work

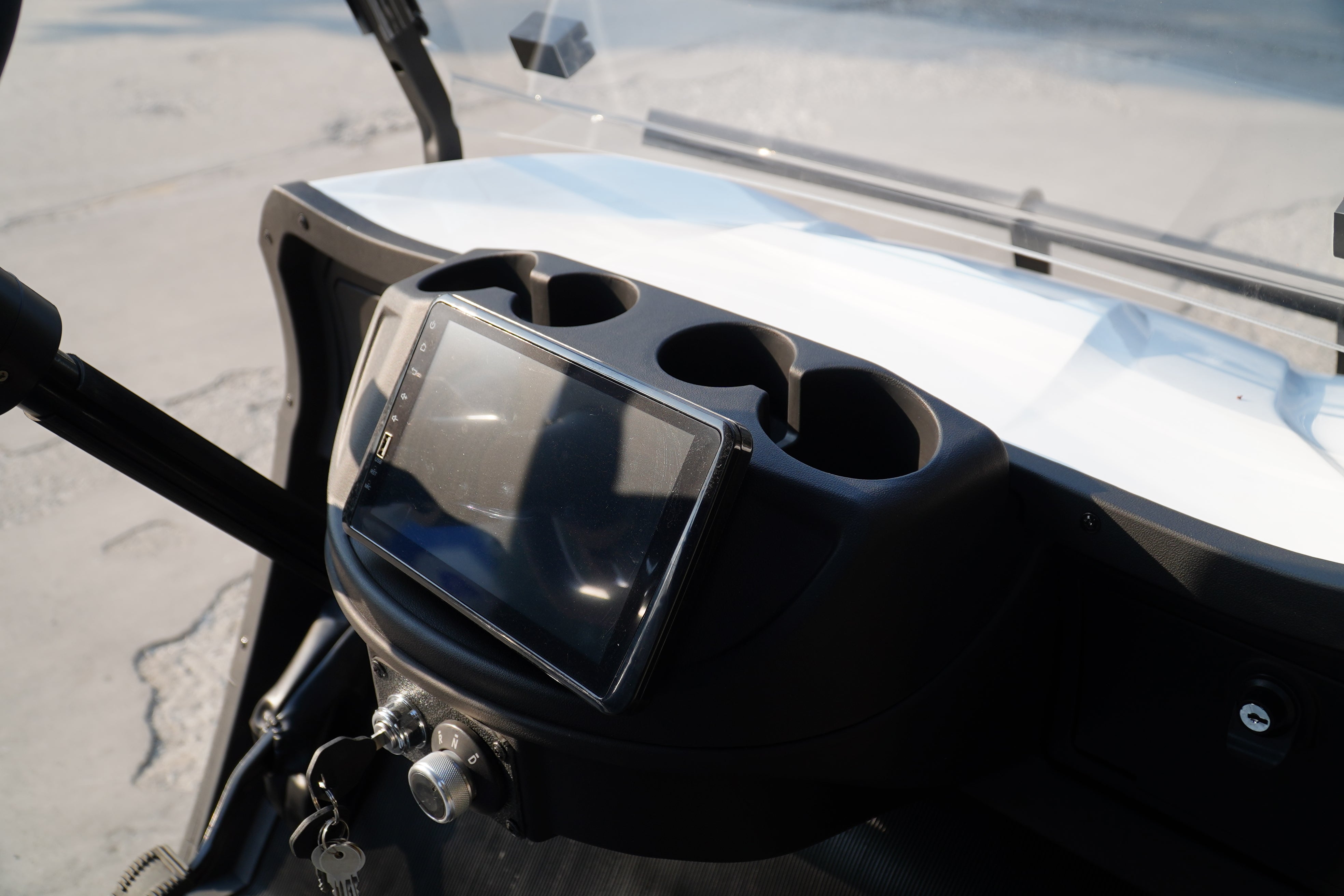

Instruments Special PP material injection molding instrument panel

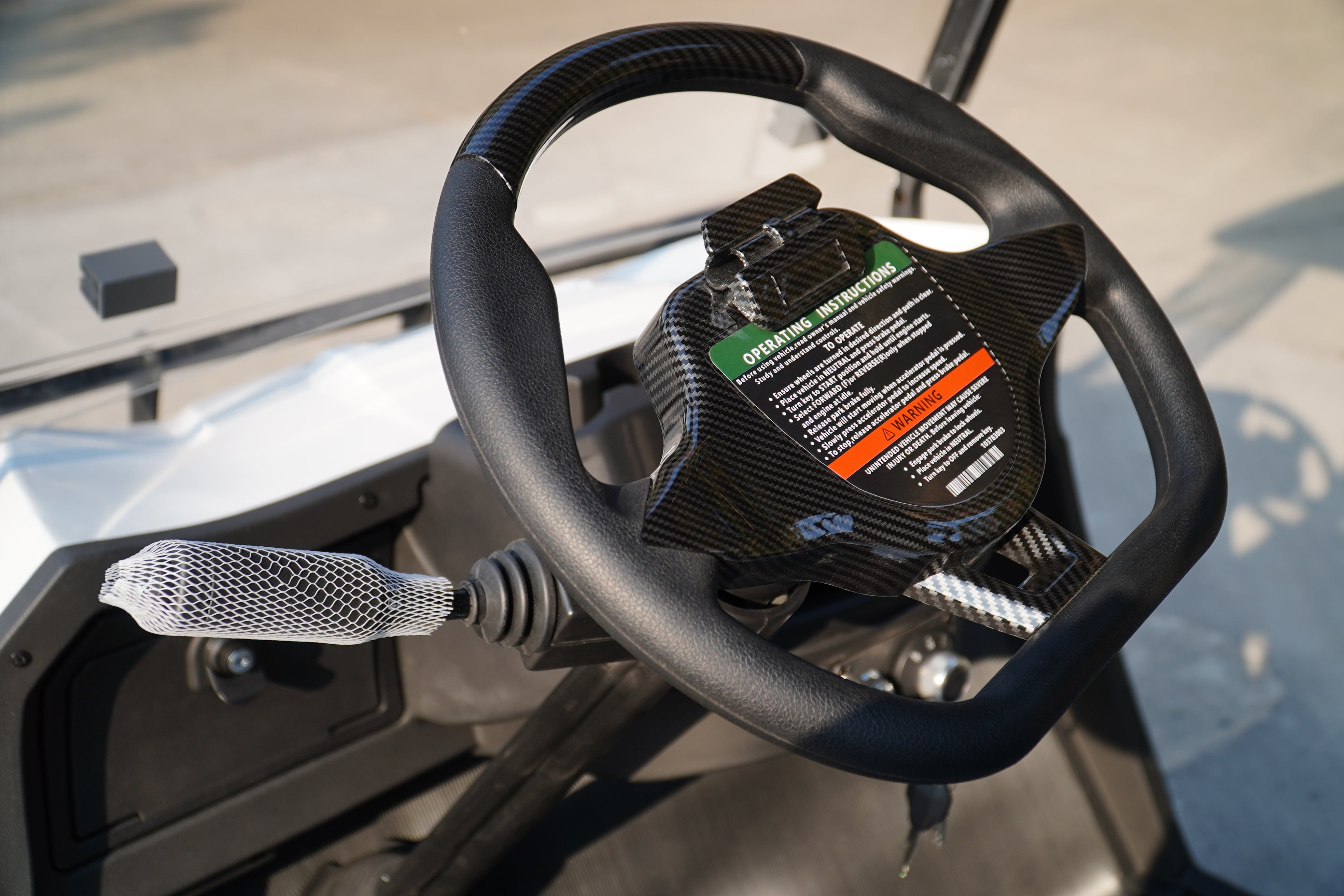

Steering wheel Carbon fiber steering wheel
Switch Start switch, light combination switch, forward and reverse gear switch

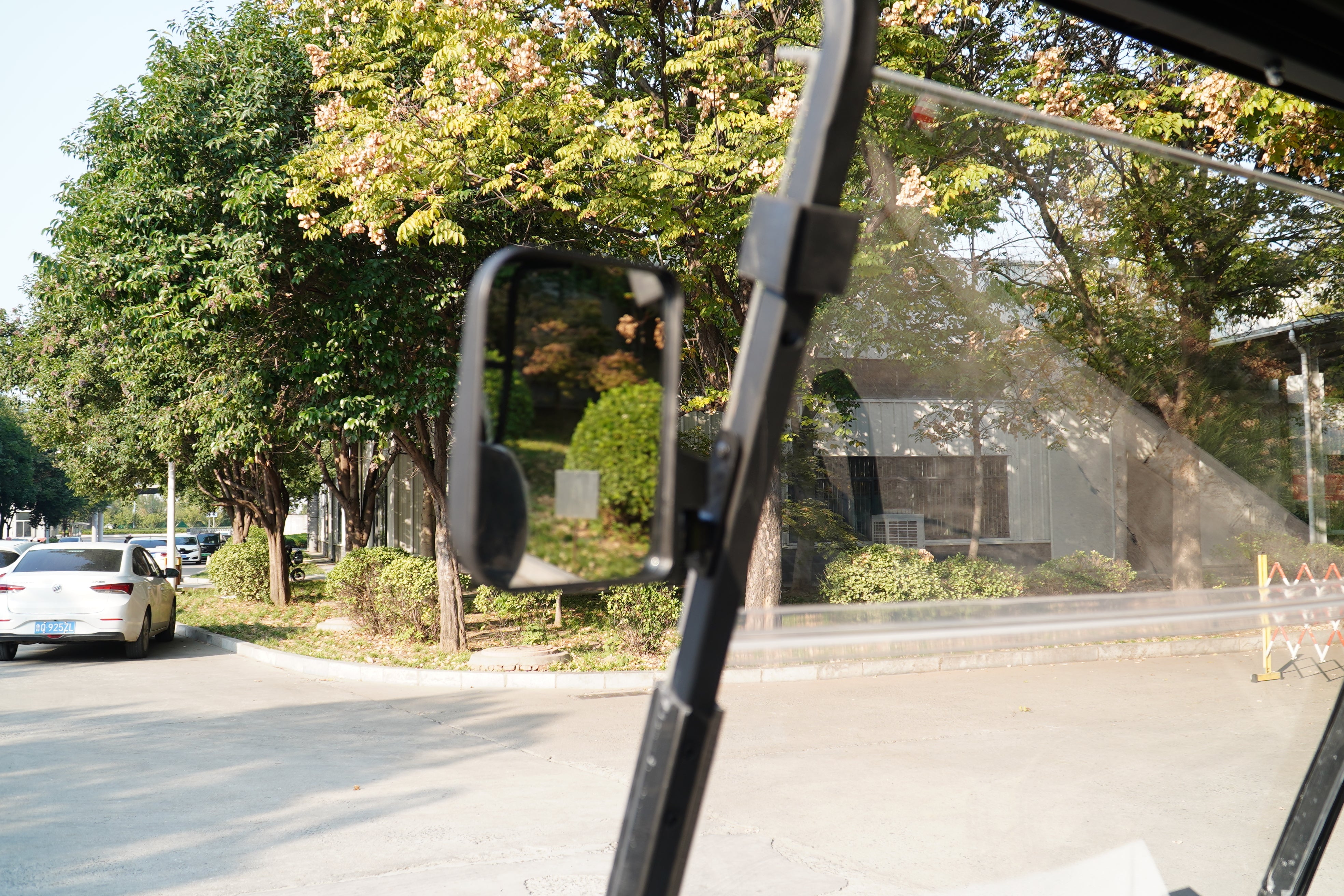

Mirrors Manual exterior mirrors
Body system
Lights and signals

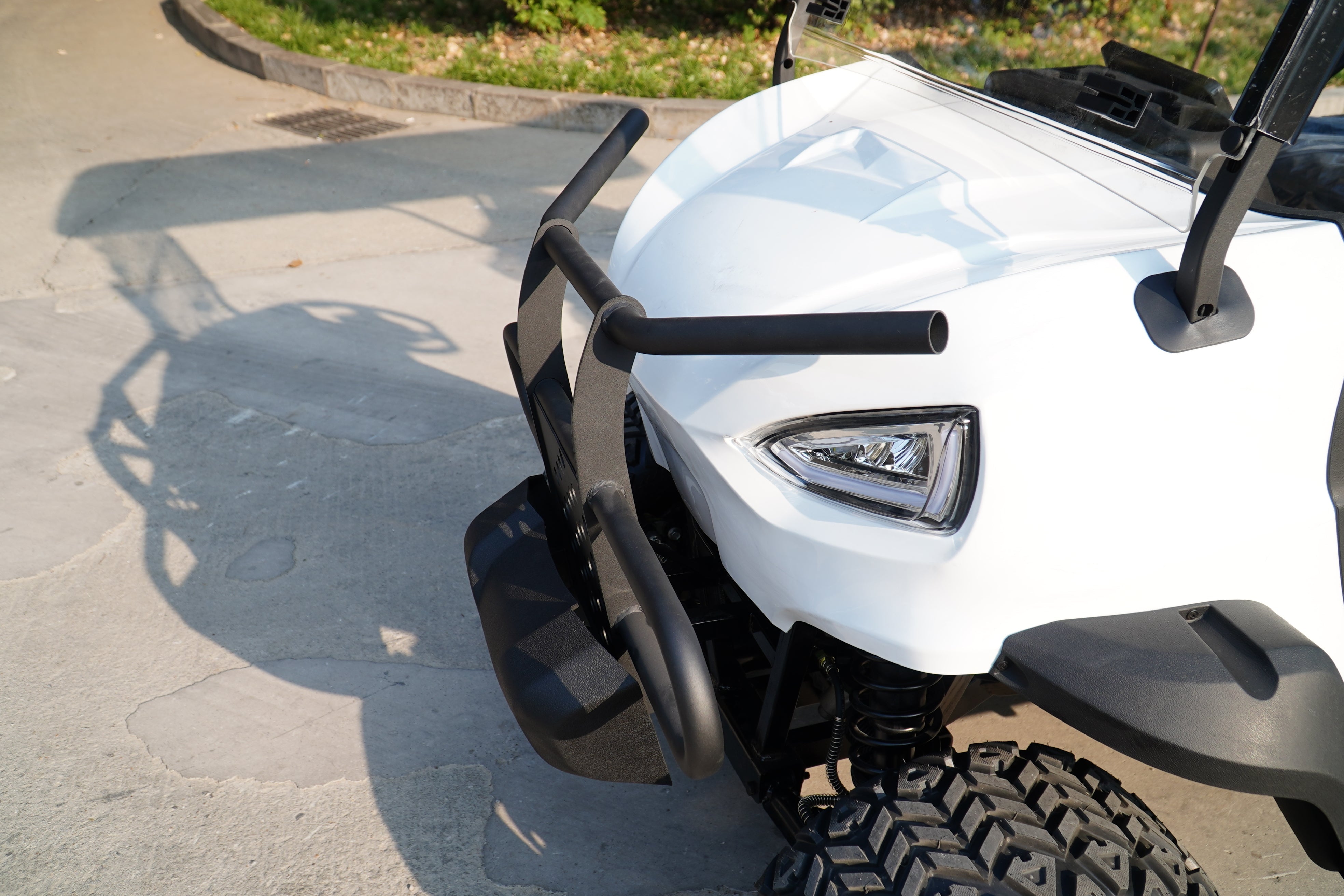

LED combination headlights, combination taillights, screen images
turn signals, brake lights, electric horns, large
Wire harness International waterproof flame retardant wiring harness
Steering system Automatic backlash compensation function for rack and pinion steering system

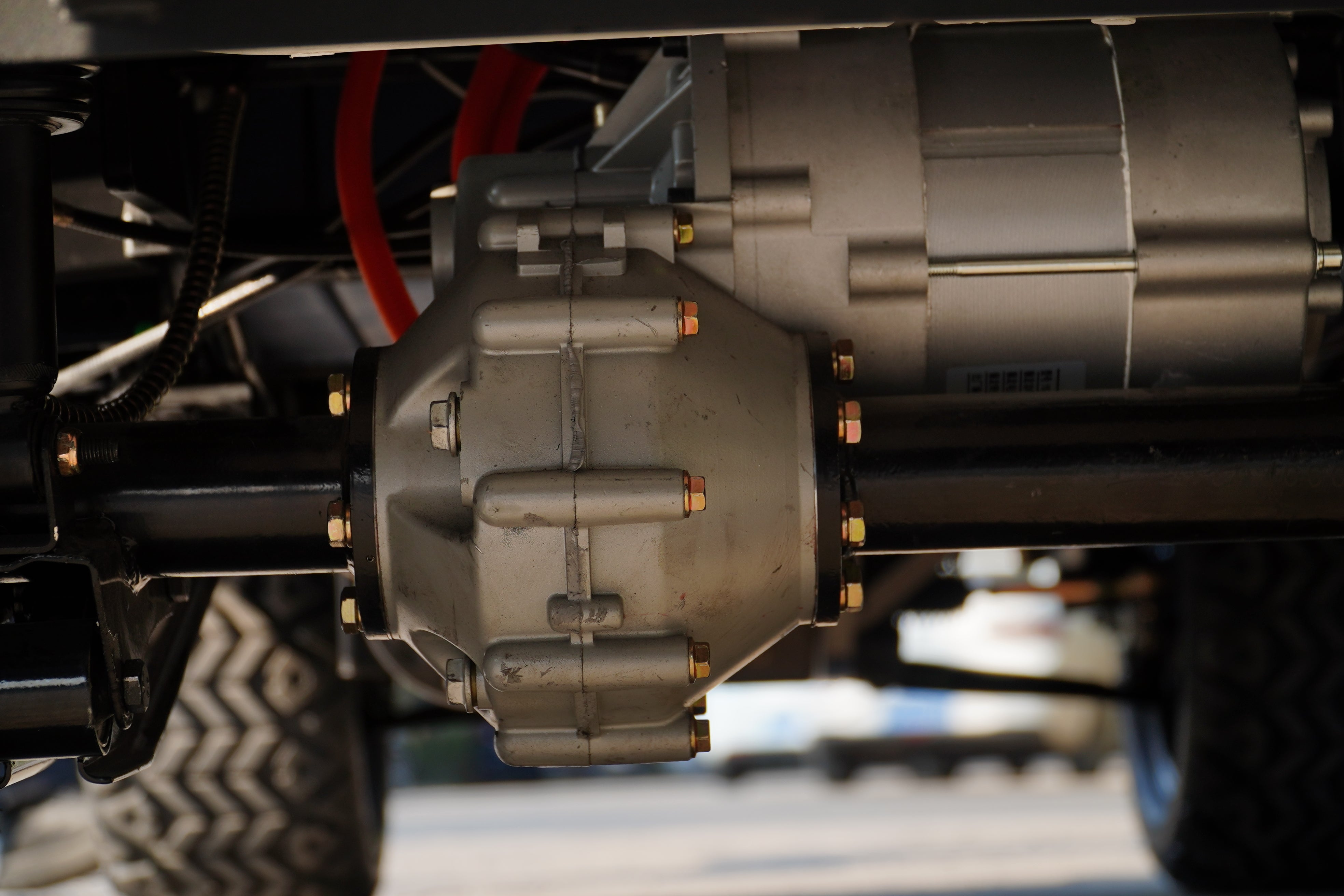

Front and rear axles and suspension Independent suspension + split rear axle + high-strength drag bar shock absorber

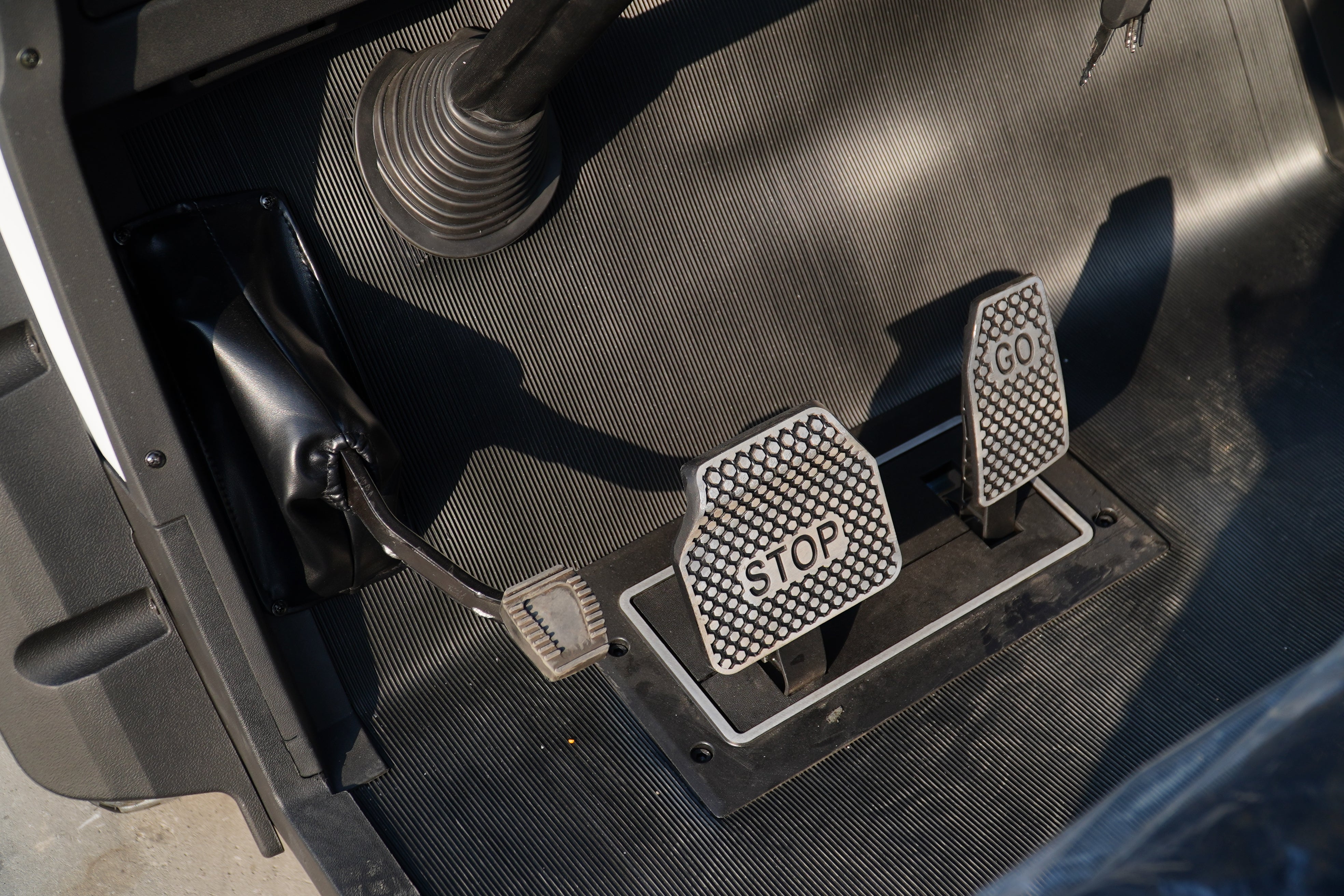

Braking system Four-wheel disc brake + pedal parking mode
Front gear Acrylic HD Folding Glass

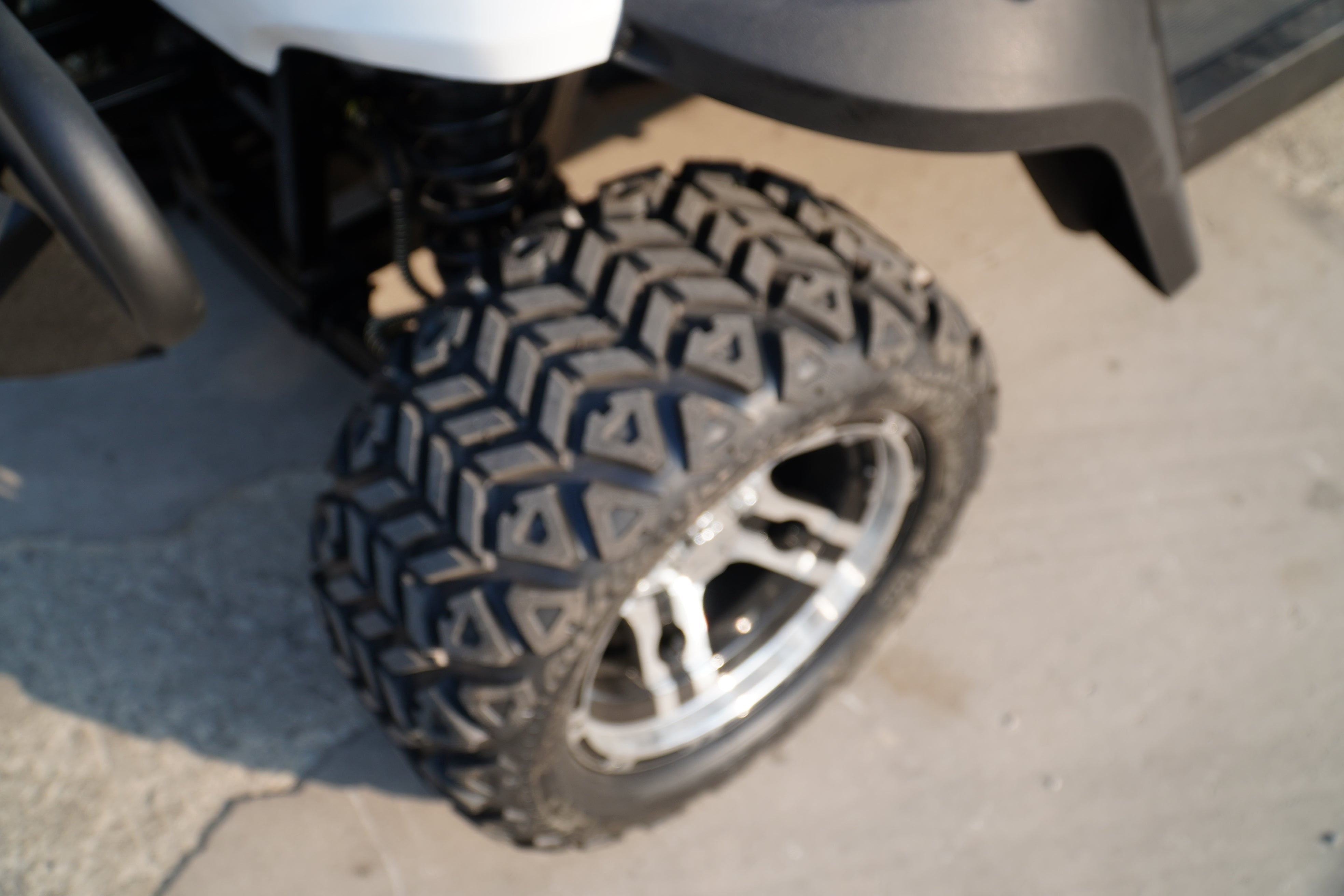

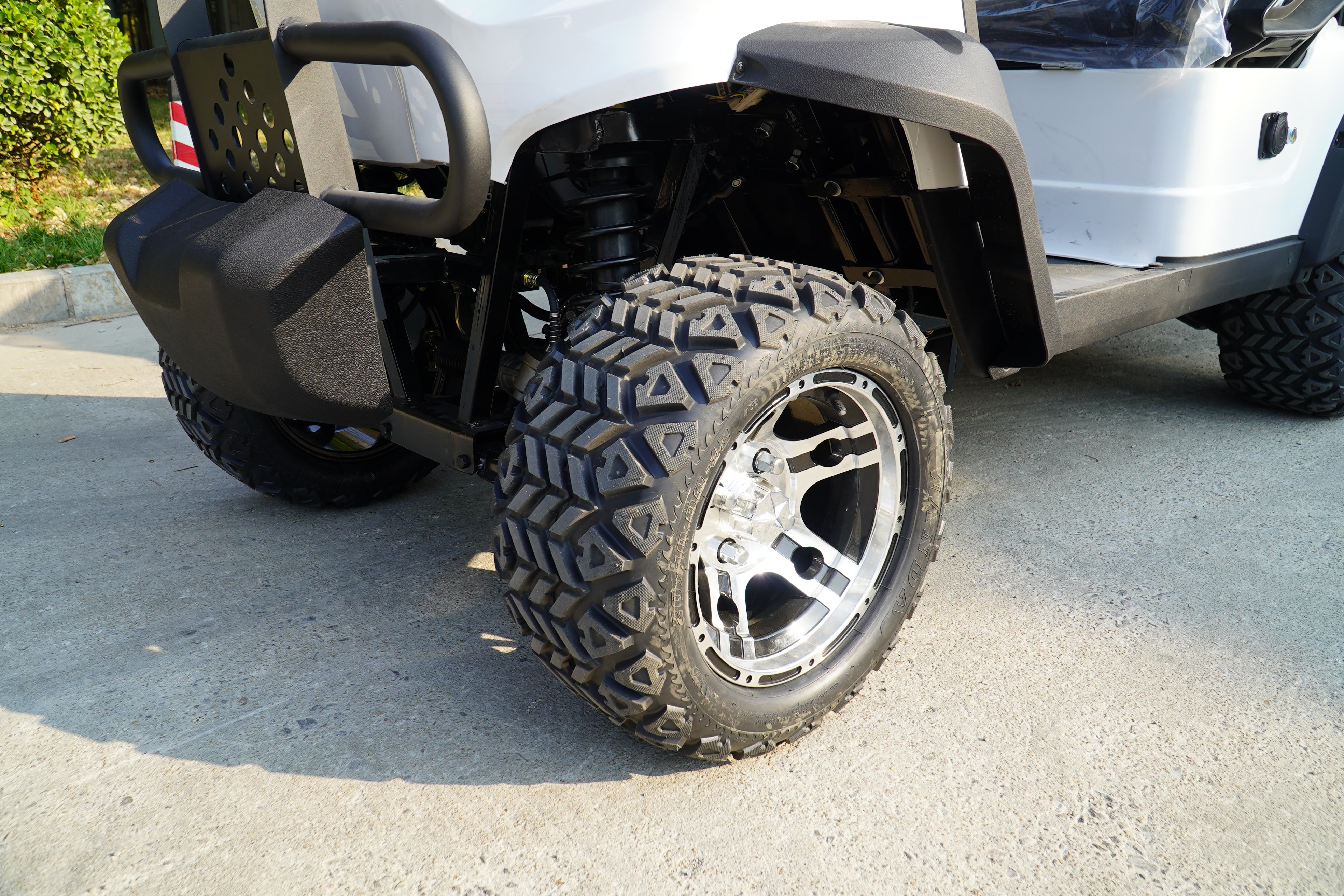

Tires 20*10.00-12 Aluminum wheels
Drive mode Rear drive
Braking system Brake Assist
