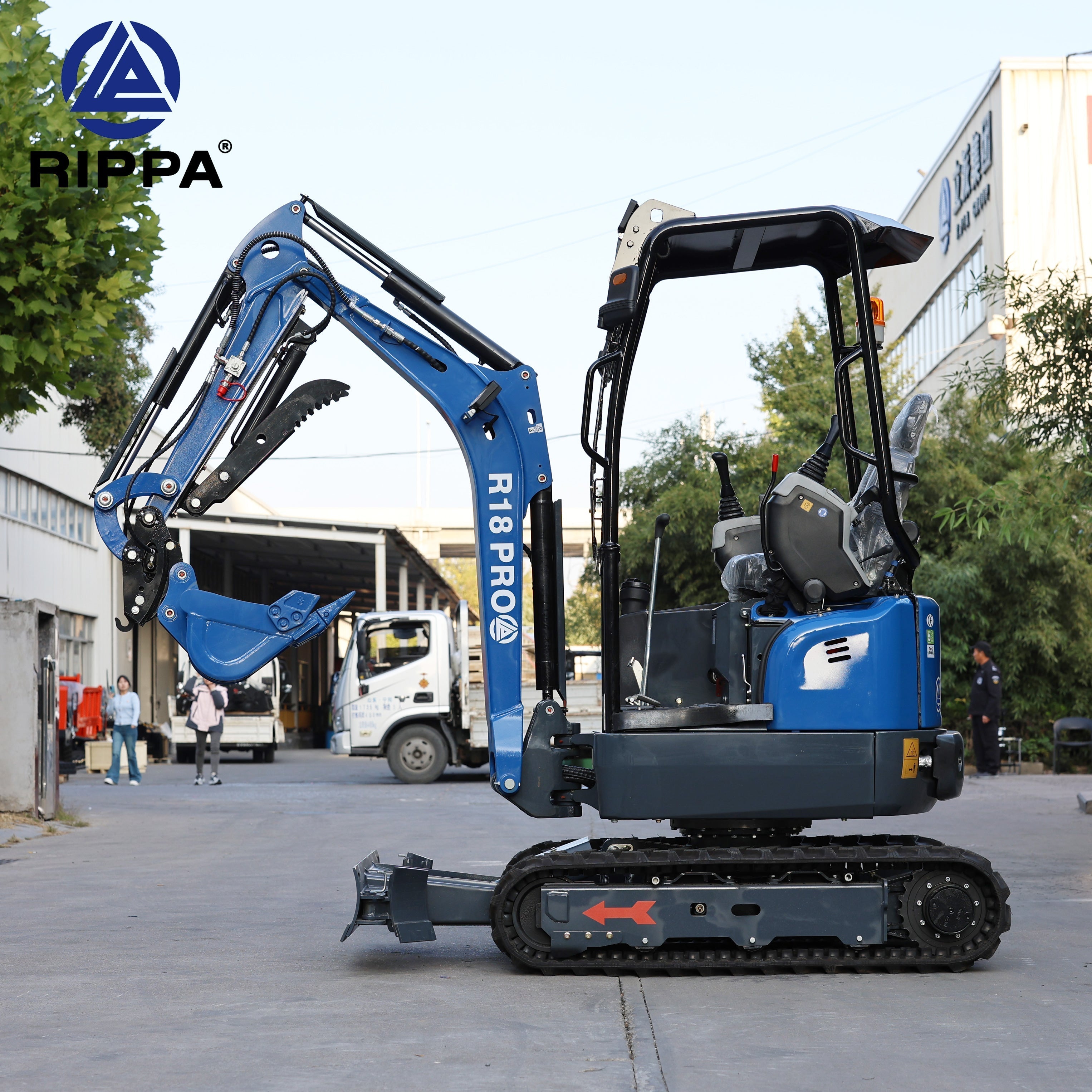

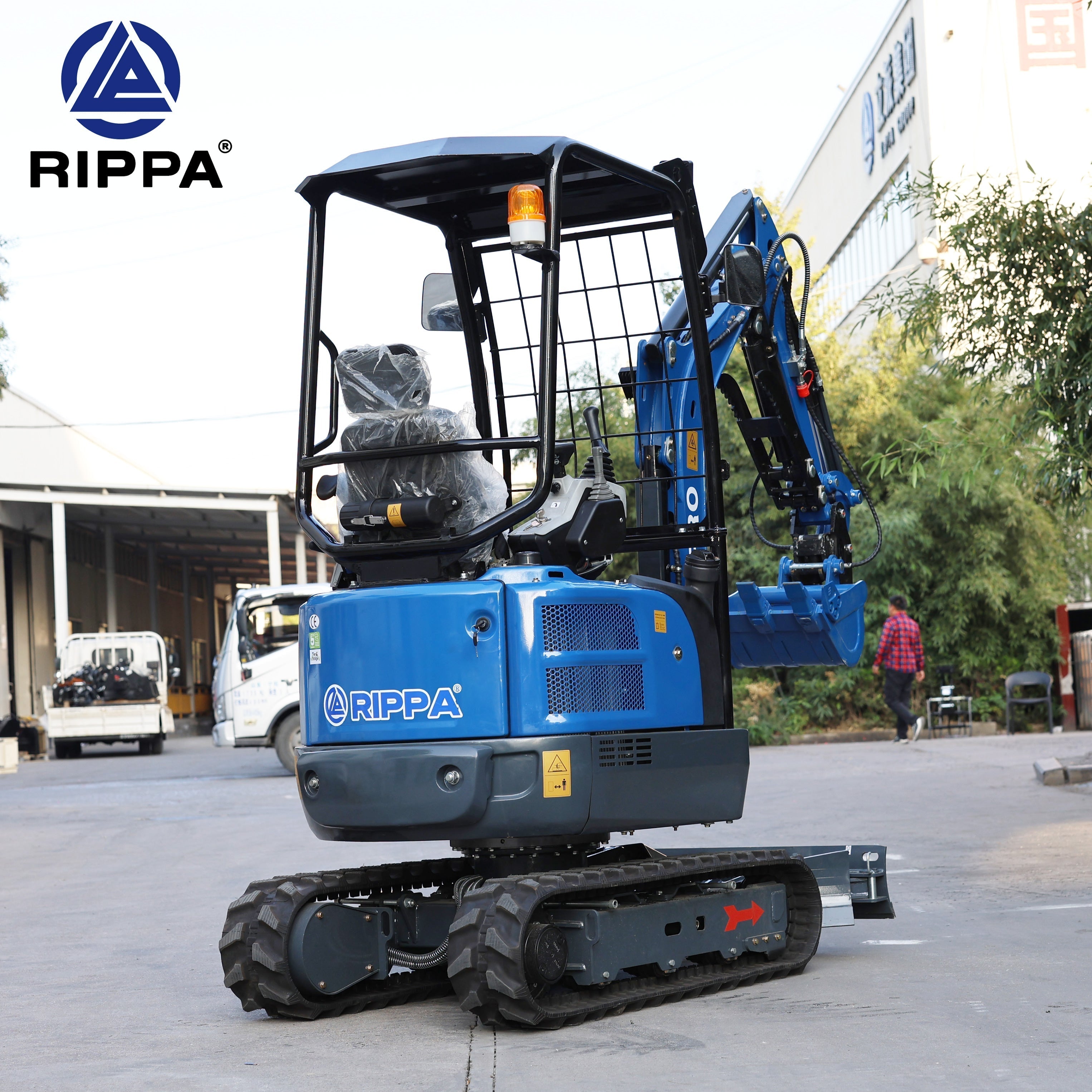

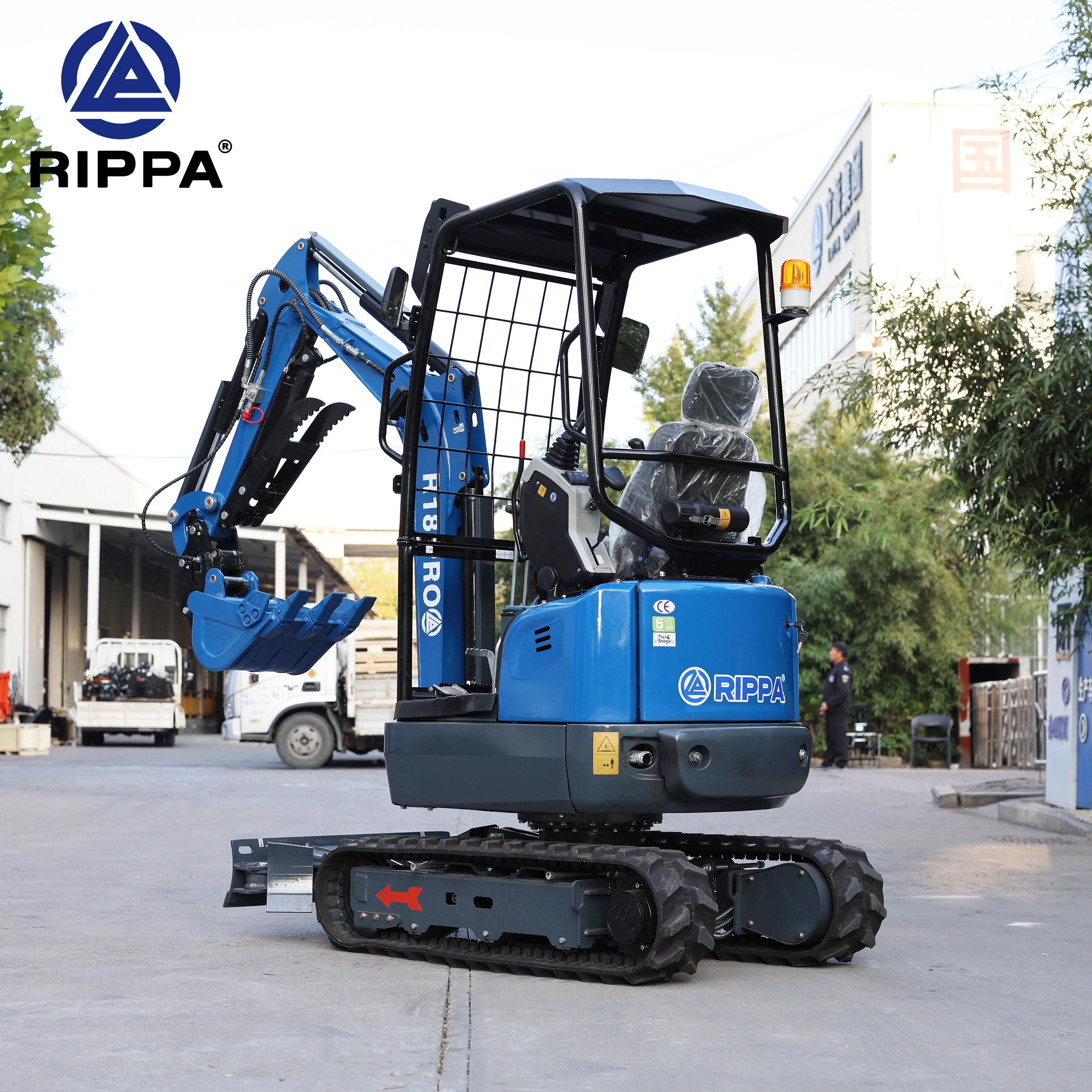

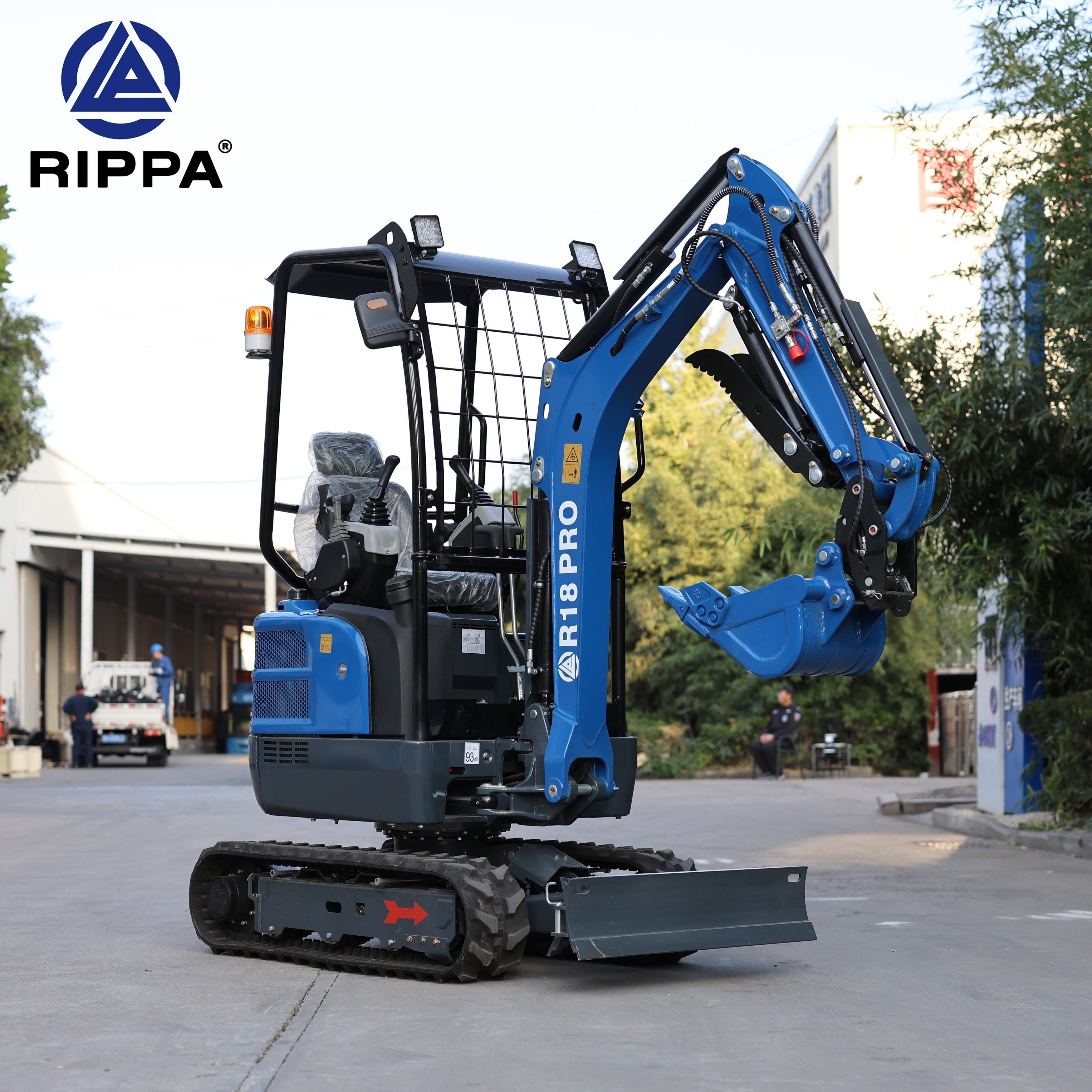

R18 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch

R18 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch

1.8 Tonne | Kubota Japanese Engine with Australia Wide Warranty, Delivered Directly by Kubota | Includes swing boom, telescopic track, and 40 cm digging bucket.

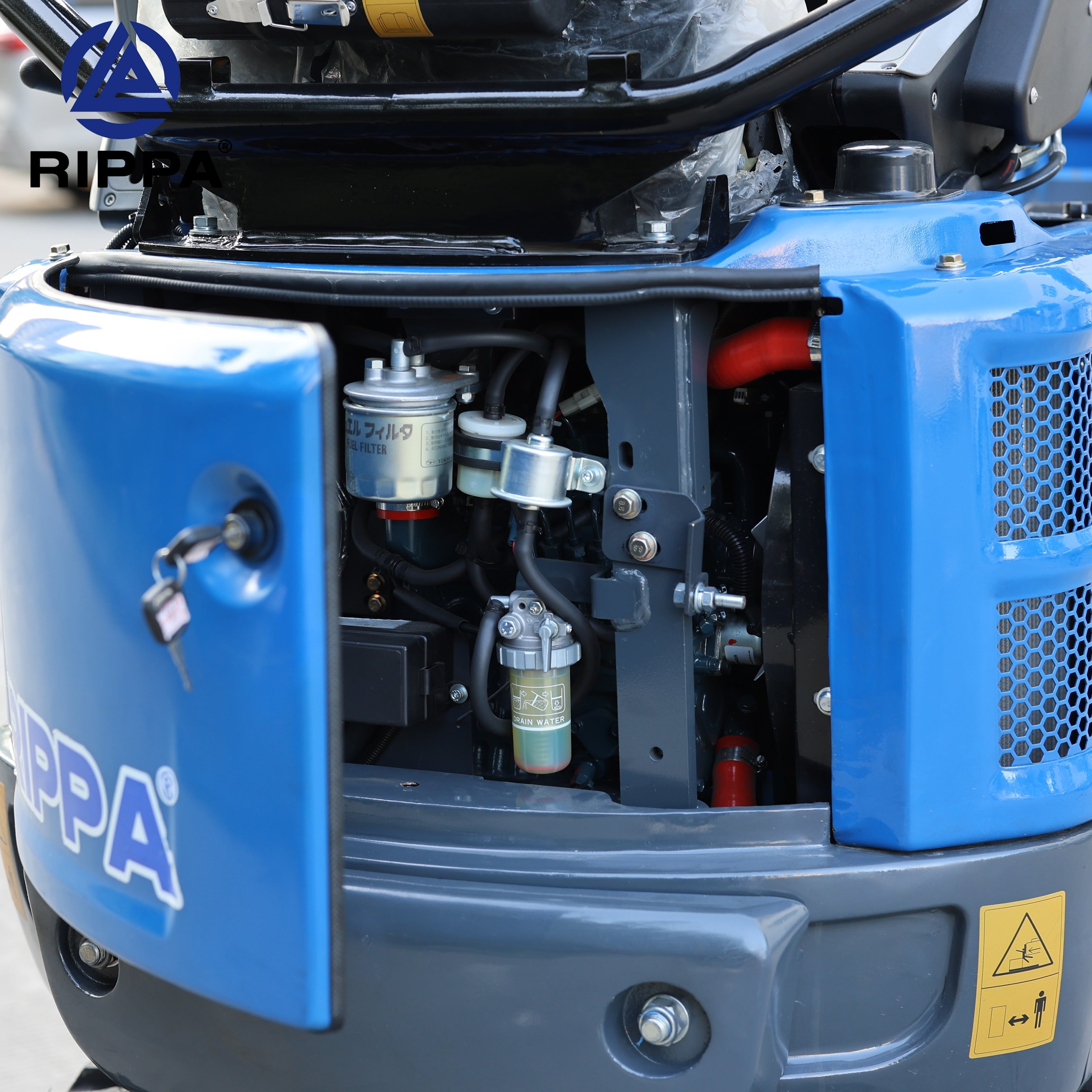

1. Engine

The R18 is powered by a Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota, delivering 11.8 kW (16.1 HP) at 2300 RPM.

• Engine Model: Kubota D902 – 3-cylinder, water-cooled diesel engine
• Displacement: 0.898 L
• Oil Capacity: 3.7 L
• Low vibration, high output, fuel-efficient
• Reliable nationwide parts and service coverage

2. Fuel

• Fuel Type: Diesel
• Fuel Grade: 0# or -10#
• Fuel Tank Capacity: 24 L
• Hydraulic Oil Tank: 22 L

3. Performance

• Operating Weight: 1818 kg
• Bucket Capacity: 0.045 m³
• Travel Speed: 0–1.5 / 0–2.8 km/h
• Ground Pressure: 30.33 KPa
• Climbing Ability: 30%
• Digging Force: 12.8 kN
• Max Digging Radius: 3975 mm
• Max Digging Depth: 2420 mm
• Max Dump Height: 2182 mm
• Max Digging Height: 3187 mm
• Track Width Adjustment: 989–1309 mm

4. Other Specs

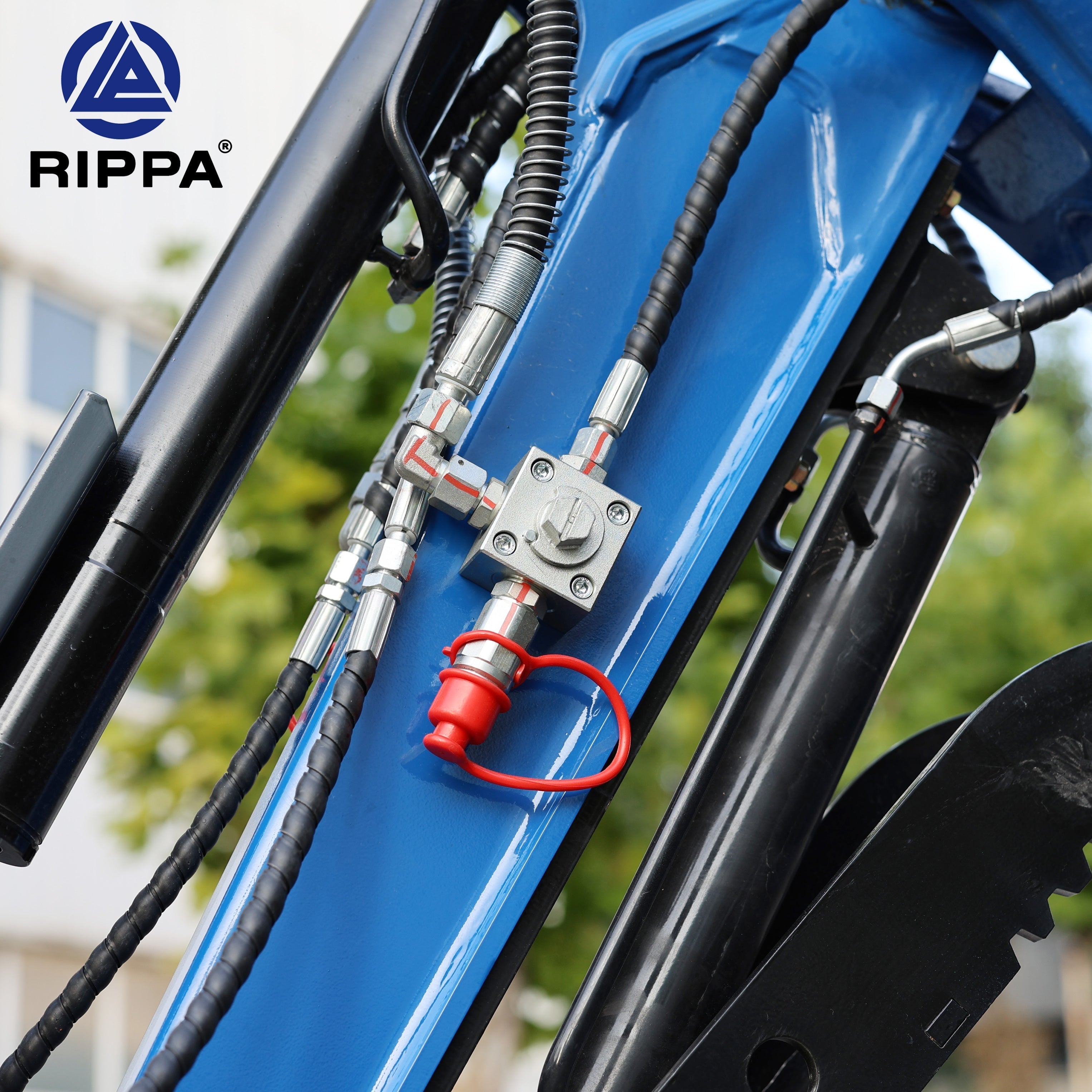

• Hydraulic Pump: Variable piston pump (Model 18 – Taifeng)
• Max Flow: 41.4 L/min
• Rated Pressure: 18 MPa | Max Pressure: 22 MPa
• Multi-Way Valve: 9-way – Taifeng
• Travel Motor: Built-in LTM02PA – Likechuan
• Swing Motor: Hydraulic – 245 displacement
• Chassis: Rubber or steel tracks, 78 rubber blocks
• Track Tensioning: Butter tensioner
• Quick Hitch: Manual or hydraulic
• Attachments: Rake, Grabber, Ripper, Breaker
• Cab: –
• Handrail: –
• Dimensions:
• Length: 2403 mm
• Width: 989 mm
• Height: 2322 mm
• Ground Clearance: 486 mm

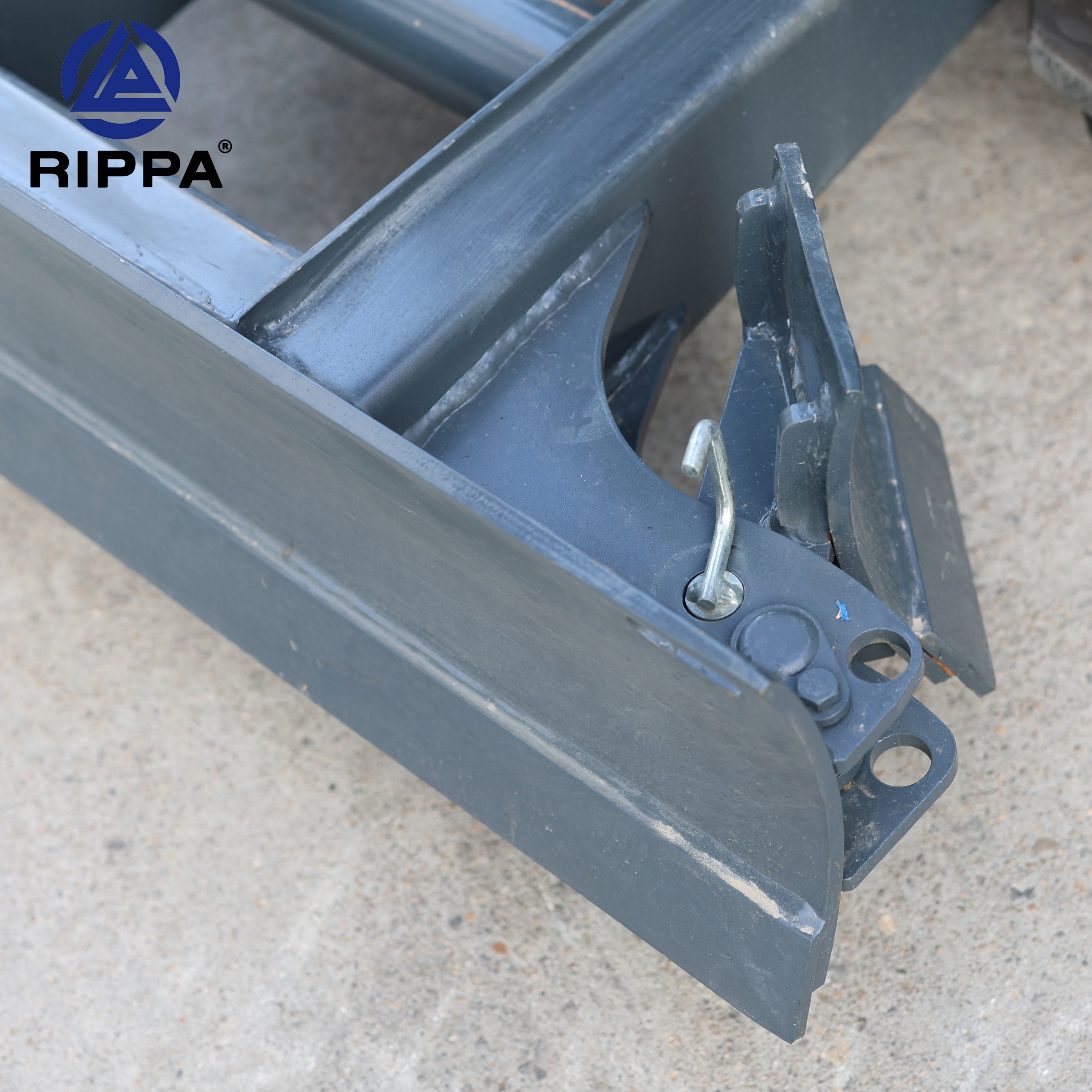

• Blade Width: 990 / 1300 mm

5. Shipping & Logistics

• Wooden Box Size: 3500 × 1200 × 2000 mm
• Units per 40HQ (Assembled): 12

6. Warranty

• Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota
• 1-Year Warranty on Hydraulic Pump
• Full nationwide parts support and servicing available
