Mini Excavator R10
Description

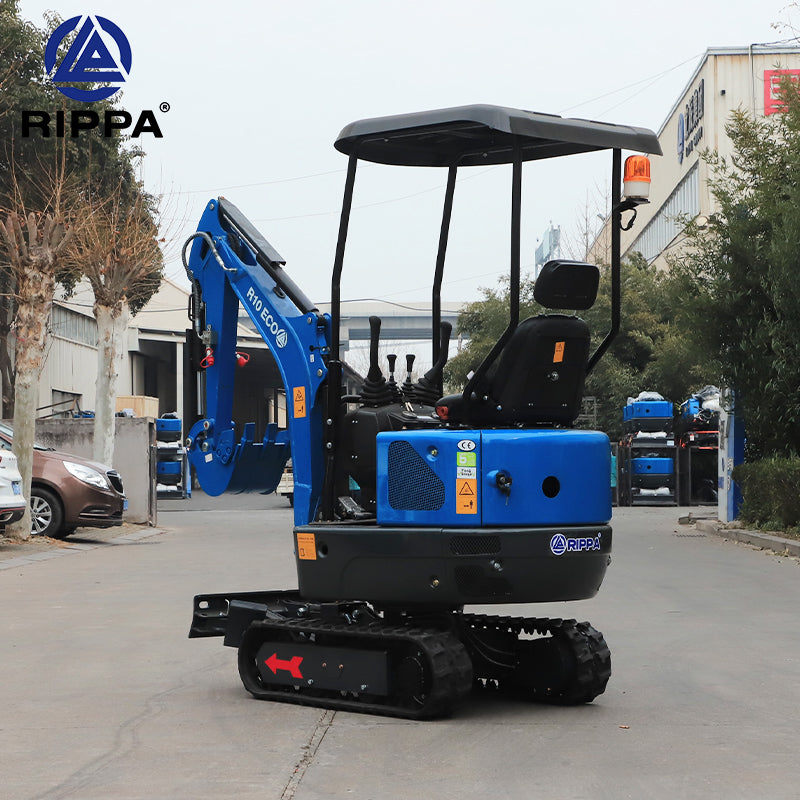

R10 Mini Excavator – Eco XD Series
1.0 Tonne | Kubota Z482 Engine | Compact. Light. Reliable.
The R10 is the lightest and most compact excavator in Labadi Engineering’s Eco XD range. Designed for tight access jobs and transport flexibility, this 978 kg mini excavator is perfect for residential contractors, plumbers, electricians, and hire companies who need a small machine with serious reliability.
Powered by a fuel-efficient Kubota Z482 diesel engine, and equipped with adjustable tracks, smooth hydraulics, and multiple attachment options, the R10 is built to perform where bigger machines can't reach.
R10 Mini Excavator – Specifications
Performance
Operating Weight: 978 kg
Bucket Capacity: 0.014 m³
Travel Speed: 0–1.5 km/h
Climbing Ability: 30%
Ground Pressure: 25.53 KPa
Max Digging Force: 9.2 kN
Max Digging Distance: 3233 mm
Max Digging Depth: 1833 mm
Max Digging Height: 3021 mm
Max Dump Height: 2247 mm
Max Deflection Angle: 61°
Track Width Adjustment: 912–1212 mm
Engine
Brand: Kubota
Model: Z482
Max Power: 8.2 kW (11.23 HP)
Max RPM: 3000 rpm
Displacement: 0.479 L
Cylinders: 2
Cooling: Water-cooled
Oil Capacity: 1.2 L
Fuel Type: Diesel
Fuel Grade: 0# or -10#
Hydraulic System
Pump Type: Gear pump
Pump Model: 306
Pump Brand: Tianjin Walking / Shengjie
Max Flow: 18 L/min
Rated Pressure: 18 MPa
Max Pressure: 20 MPa
Multi-way Valve: 2+2+5 joints
Valve Brand: Tengfei
Travel Motor: BM6-315
Swing Motor: BM2-315
Motor Displacement: 315
Chassis & Frame
Quick Hitch: Manual ○ / Hydraulic ○
Attachments Compatible: Rake, Grabber, Ripper, Breaker ◎
Counterweight: ◎ Optional
Track Tensioning: Mechanical
Cab: ■
Handrail: ■
Air Conditioning: –
Dimensions
Transport Length: 2430 mm
Width: 912 mm
Height: 2201 mm
Ground Clearance (Counterweight): 361 mm
Boom Length: 1477 mm
Arm Length: 799 mm
Dozer Blade Width: 912–1212 mm
Track Type: O-Steel / O-Rubber
Track Spec: 1807237
Rubber Block Count: 74
Fuel & Fluids
Fuel Tank Capacity: 5.5 L
Hydraulic Oil Tank: 12.5 L
Shipping Reference
Wooden Box: 3200 × 1011 × 1711 mm
After Cab Removal: 3200 × 1011 × 1711 mm
Compact Box Size: 1300 × 1050 × 1722 mm
Units per 40HQ (Assembled): 13
Units per 40HQ (Dismantled): 26
Warranty
All Labadi Engineering excavators include:
1-Year Warranty on Engine
1-Year Warranty on Hydraulic Pump
Nationwide parts support and customer service available
